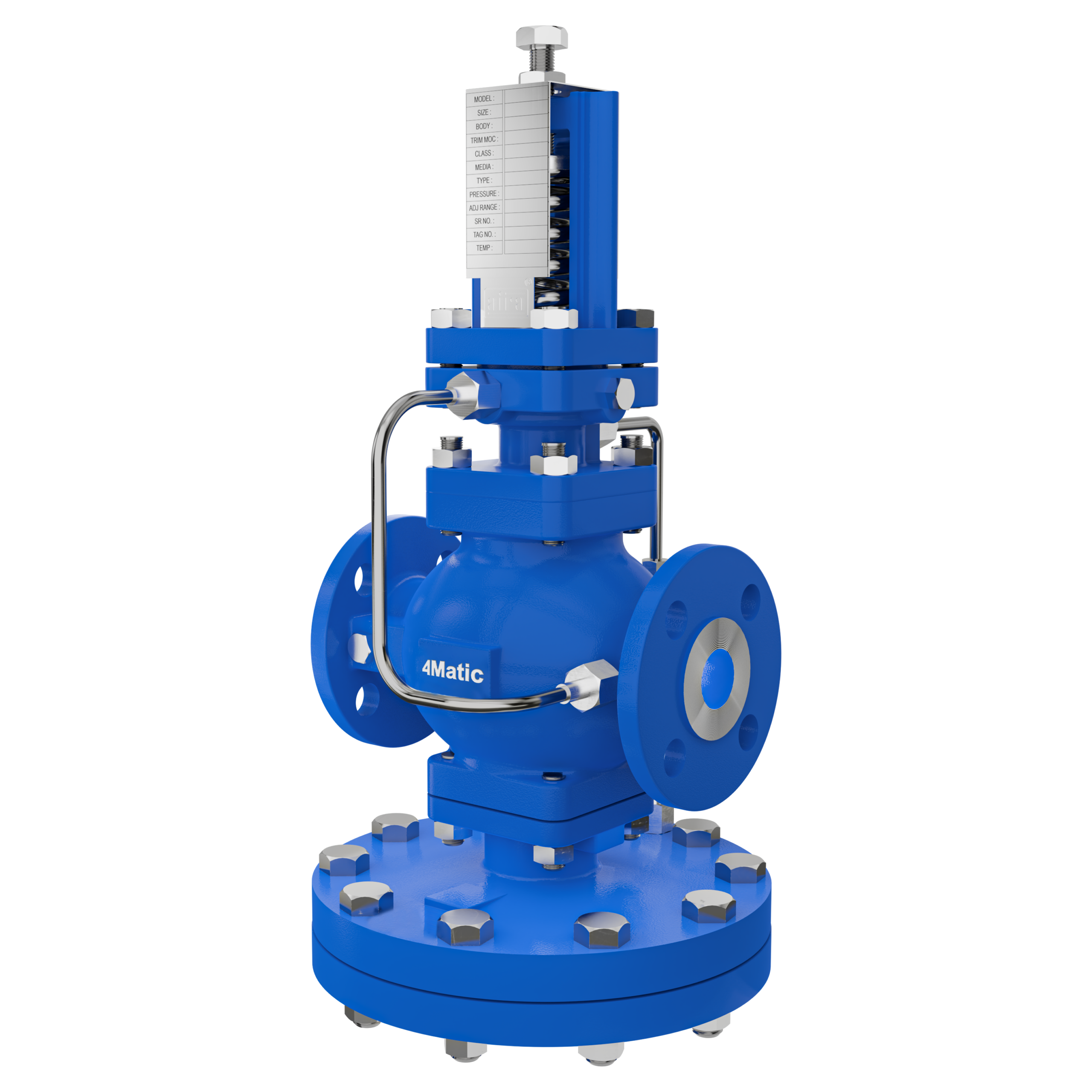

Steam Pressure Reducing Valve | Manufacturer, Supplier, Exporter

Steam pressure reducing valves do not require an outer source of
Steam pressure reducing valves are more cost effective due to the adaptation of uncomplicated
Steam pressure reducing valves provide quick
Feedback controllers or separate components for measurement are not required for these
Steam pressure reducing valves have proven most consistent performance as well as cost effective maintenance.
As these valves have no stem packing, it results into elimination of external leakage and high

DIMENSIONS: Flanged End

Size (DN)	A	B	C	D	E	Weight
15	147	175	400	130	270	15
20	167	175	410	130	280	17
25	184	206	415	146	271	23
32	184	206	425	146	280	25
40	253	280	490	185	305	40
50	253	280	490	185	305	42
80	328	350	598	266	331	103
(Note : Dimensions (approx.) mm and kg)

DIMENSIONS: Screwed End

Sr. No.	Description	Material
1	Body	CI / DI / WCB / CF8 / CF8M
2	Chamber	CI / DI / WCB / CF8 / CF8M
3	Spring Housing Cover	CI / DI / WCB / CF8 / CF8M
4	Pressure Adjutment Spring	Spring Steel
5	Bottom Spring Plate	S.S. 304 / S.S. 316
6	Pilot Diaphragm	S.S. 304 / S.S. 316
7	Pilot Valve with Internal Parts	S.S. 304 / S.S. 316
8	Internal Strainer	S.S. 304 / S.S. 316
9	Gasket for Body	Reinforced Exfoliate Graphite
10	Return Spring	Spring Steel
11	Main Diaphragm	S.S. 304 / S.S. 316
12	Main Diaphragm Plate	S.S. 304 / S.S. 316
13	Gasket for Chamber	Reinforced Exfoliated Graphite
14	Adjustment Screw and Nut	Carbon Steel

Steam Capacity Chart
