Flow Control Valve

Pressure Reducing Valve

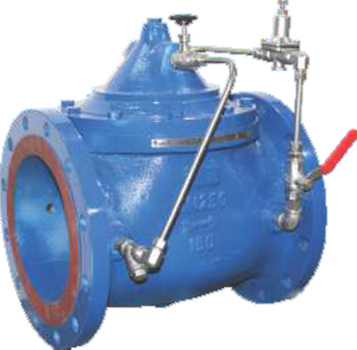

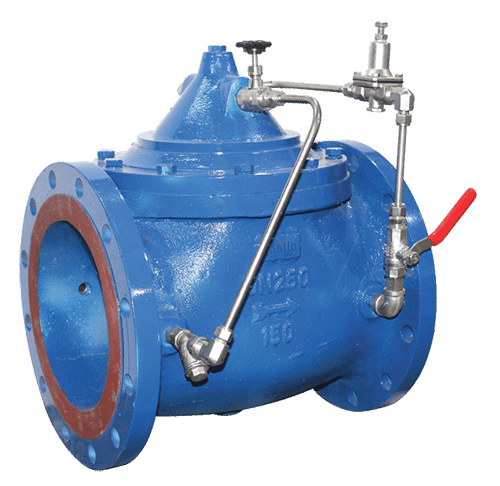

The 4MATIC Make Pilot Operated Pressure Reducing Valve is designed for applications where the reduction of high inlet pressures to a safe and stable outlet pressure is required. The pilot assembly reacts to changes in downstream pressure allowing the main valve to modulate between the closed and open position ensuring a constant downstream set pressure. Once the downstream pressure reaches the pilot setting, the main valve will seal shut preventing damage downstream. Pressure regulation is not dependent upon flow rate, resulting in minimal pressure loss through the valve.

Pressure Relief Valve/PSV- Pressure Sustaining Valve

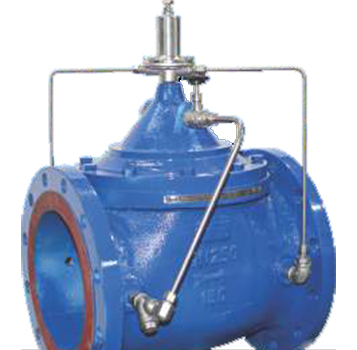

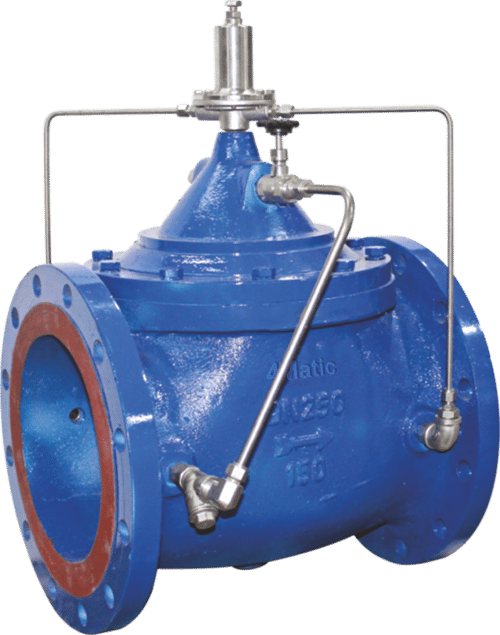

“4MATIC” Pressure Relief Valve is a pilot operated valve, designed specifically to relieve excess pressure. Pressure Relief Valve is designed to maintain constant upstream pressure within close limits. In operation, the valve is actuated by line pressure through a pilot control system, opening fast to maintain steady line pressure but closing gradually to prevent surges.The pressure-sustaining valves keeps constant pressure in a line regardless of variations in inlet pressure. If the inlet pressure increases for any reason the sustaining valve keeps the outlet pressure constant and reduces hammering in the pipe line.

On/ Off Type Pressure Reducing Valve

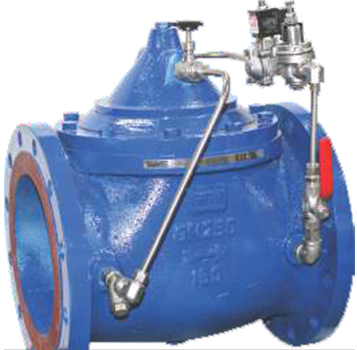

“4Matic” Solenoid Control on/off type Pressure Reducing Valve is designed to provide on/off or open/close with reduction of high inlet pressures to a safe and stable outlet pressure is required. The pilot assembly reacts to changes in downstream pressure allowing the main valve to modulate between the closed and open position ensuring a constant downstream set pressure. This valve can be control with a PLC Panel and is mostly used in application where remote on/off of pressure reducing valve is required.

Hand Lever Operated Ball Valve

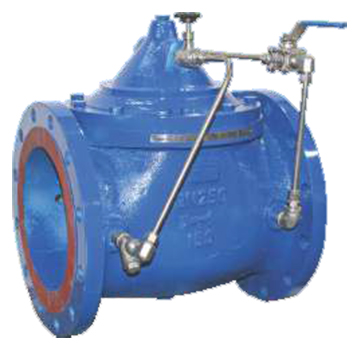

“4MATIC” Automatic Hydraulic Control Valve is a Globe Design Pilot Operated Diaphragm Actuated Valve. A Ball Valve acts asa Pilot designed specifically for applications where Quick Response of valve function is preferred. They function as an On/Off valve and as they are pilot operated they Open and Close in Seconds. It requires less man power and time to operate.

Solenoid Valve

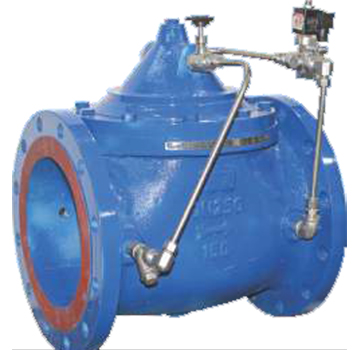

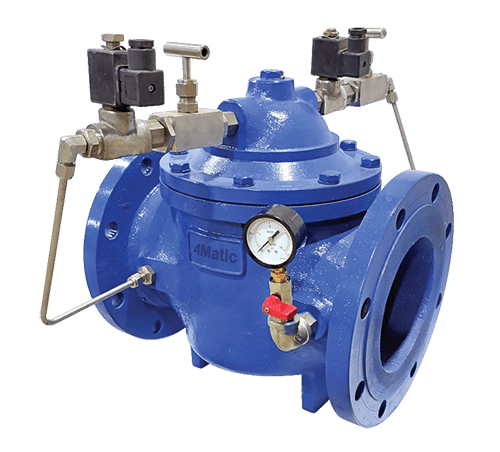

“4MATIC” Automatic Control Valve is Globe Design Pilot Operated Diaphragm Actuated Valve. Solenoid Valve as in Pilot are designed specifically for applications where remote control of valve function is preferred. They function as an On/Off valve and as they are pilot operated there Open and Close in Seconds. This Valve Helps the User to Open/Close the valve with Electric Current.

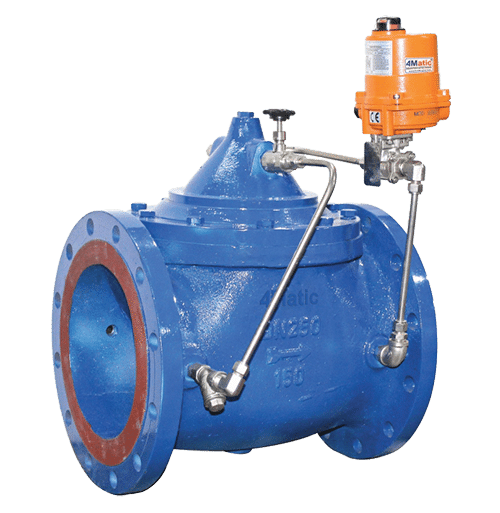

Actuator Operated Ball Valve

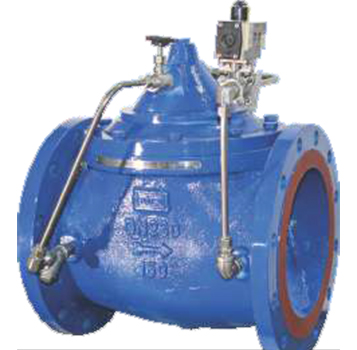

“4MATIC”Pneumatic Actuator Operated Hydraulic Control Valve is Globe Design Pilot Operated Diaphragm Actuated Valve. Pneumatic Ball Valve as in Pilot are designed specifically for applications where remote control of valve function is preferred. They function as an On/Off valve and as they are pilot operated there Open and Close in Seconds. More Accessories can be mounted like Limit Switch for On/Off Indication.

Y Type Control Valve

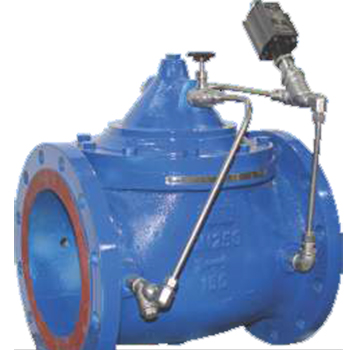

“4MATIC” Automatic Control Valve is Globe Design Pilot Operated Diaphragm Actuated Valve. A Y-Type Control as in Pilot are designed specifically for applications where there is a requirement for the valve to open when air is supplied and close when air fails. This valve works as Air to open and Air Fail to Close.

Smart Float Valve

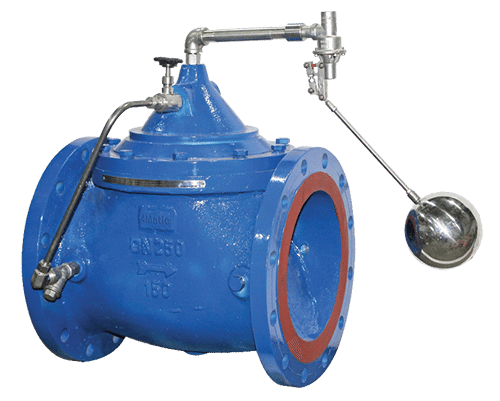

Float Valve

“4MATIC” Automatic Control Valve is a Globe Design Pilot Operated Diaphragm Actuated Valve. It is installed at the inlet of the tank/reservoir, it allows to keep a constant/ set level of water. As the Float is linked to the Pilot it ensures to stop the flow of water at predetermined Level while realizes water supplement when the float lowers. This Valve helps to keep a Constant level of water in the Tank. This valve can work in a remote location, perfect for all those applications where the water tank is not easily accessible.

Level Control Valve / Modulating Float Valve

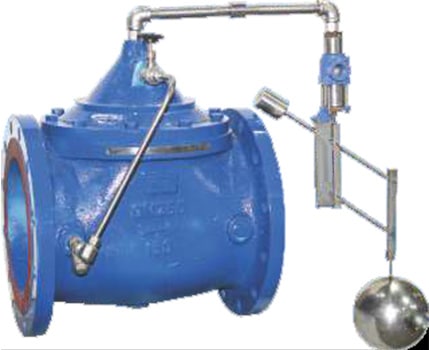

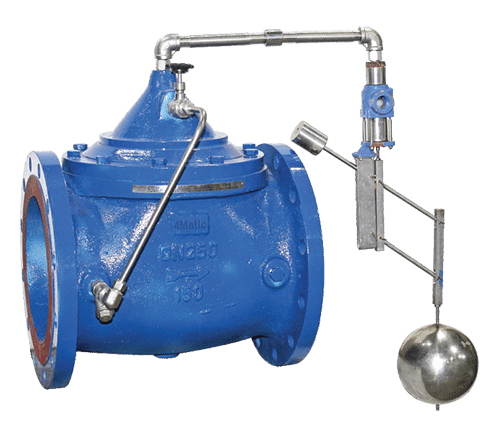

“4MATIC” Automatic Control Valve is a Globe Design Pilot Operated Diaphragm Actuated Valve. It is installed at the inlet of tank/reservoir, unlike a float valve it allows you to adjust the level of water as desired. As the Level Float is linked to the Pilot it ensures to Stop the Water Filling at predetermined Level while realizes water supplement when the float lowers to the desired level. This Valve helps to keep the optimal Water level in the Tank. The valve can work in remote location and does not require any Power Supply, so it is perfect for all those applications where the water tank is not easily accessible.

Performance Specifications

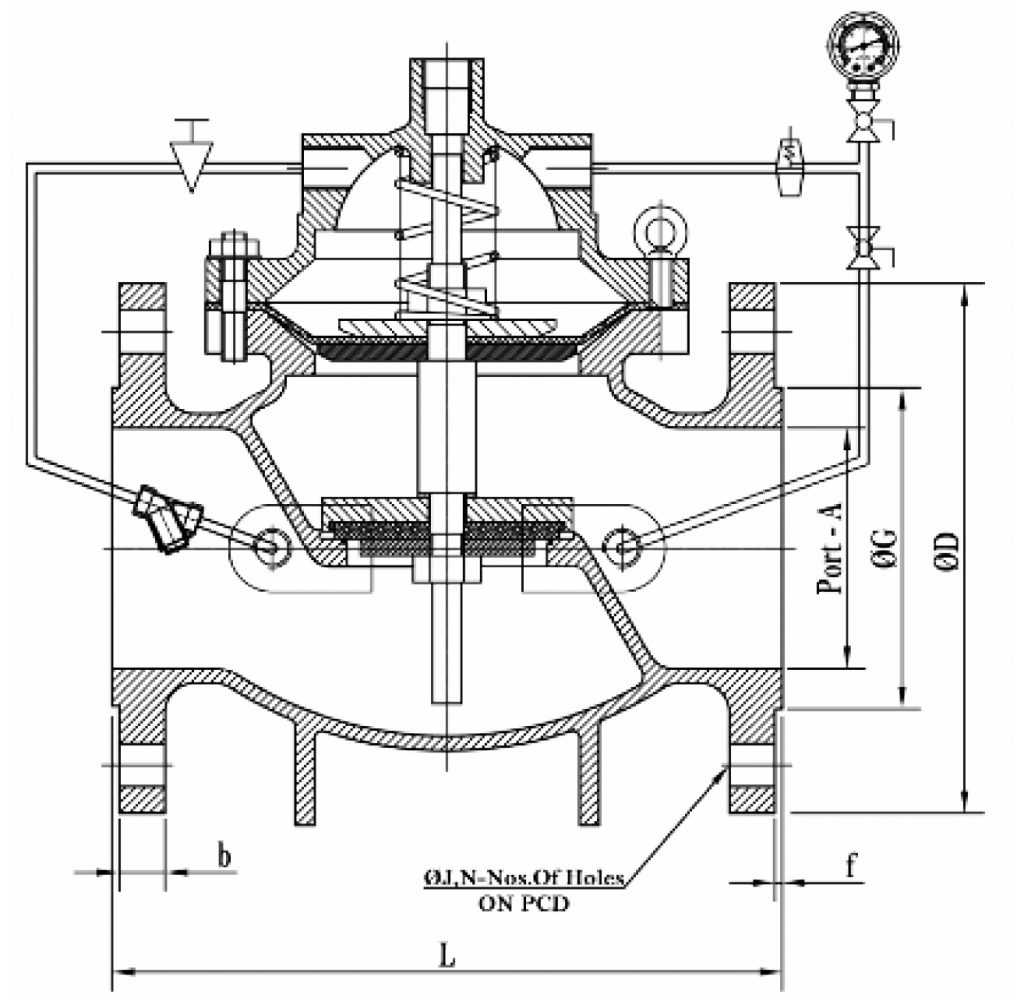

Performance specification
SIZE PORT A L OD b f OG OJ N PCD weight
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm        inch kg            lbs
50 2 50 2 214.5 8.58 150 6.00 14.3 0.57 2 92.1 3.68 19.05 0.76 4 120.7     4.83 16           35
65 2.5 64 2.5 237.5 9.50 180 7.20 15.9 0.64 2 104.8 4.19 19.05 0.76 4 139.7     5.59 23           50
80 3 78 3 249 9.96 190 7.60 17.5 0.70 2 127 5.08 19.05 0.76 8 152.4     6.10 32           70
100 4 99.5 4 291 11.64 230 9.20 22.3 0.89 2 157.2 6.29 19.05 0.76 8 190.5     7.62 64          140
125 5 124 5 323 12.92 255 10.20 22.3 0.89 2 185.7 7.43 22.2 0.89 8 215.9     8.64 96          212
150 6 149 6 360 14.40 280 11.20 23.9 0.96 2 215.9 8.64 22.2 0.89 8 241.3     9.65 130         285
200 8 190 8 421 16.84 315 13.80 27 1.08 2 269.9 10.80 22.2 0.89 8 298.5   11.94 227        500
250 10 250 10 450 18.00 405 16.20 28.6 1.14 2 323.8 12.95 25.4 1.02 12 362      14.48 355        780
300 12 298 81 514 20.56 485 19.40 30.2 1.21 2 381 15.24 25.4 1.02 12 431.8   17.27 530       1165
350 14 346 92 672 26.88 535 21.40 33.4 1.34 2 412.8 16.51 28.6 1.14 12 476.3   19.05 727       1600
400 16 400 102 728 29.12 595 23.80 35 1.40 2 469.9 18.80 28.6 1.14 16 539.8   21.59 1030     2265
450 18 439 114 720 28.80 635 25.40 38.1 1.52 2 533.4 21.34 31.75 1.27 16 577.9   23.12 1355     2982
500 20 489 127 790 31.60 700 28.00 41.3 1.65 2 584.2 23.37 31.75 1.27 20 635      25.40 1773     3900
600 24 600 154 967 38.68 815 32.60 46.1 1.84 2 692.2 27.69 34.9 1.40 20 749.3   29.97 2818     6200

Pressure Regulation Specifications

Nominal Pressure Shall Test Sealing Test Maximum Outlet
Pressure
Regular Range
of Outlet
Kg/Cm2 PSI Kg/Cm2 PSI Kg/Cm2 PSI Kg/Cm2 PSI Kg/Cm2 PSI
10 14.2 11 156.5 1 156.5 10 142.2 0.9-8 12.8-113.8
16 227.6 17 214.8 17 241.8 16 227.6 10-14 14.2-113.8
25 335.6 27 384.0 27 384.0 26 355.6 1.5-16 21.3-227
