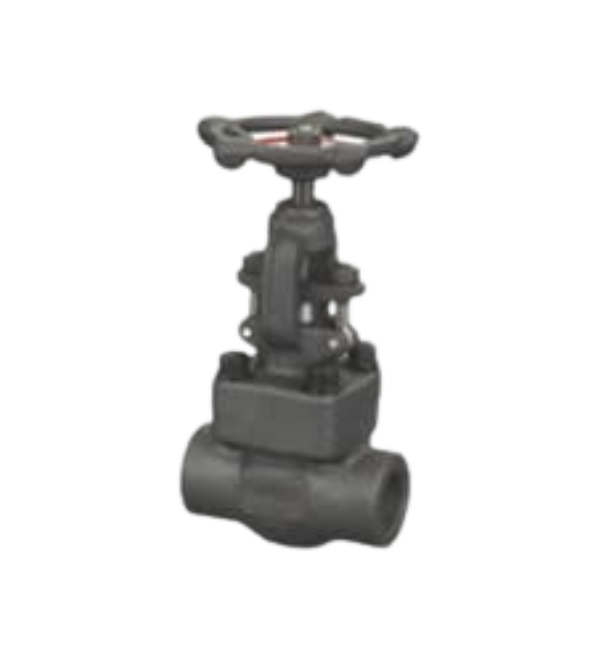

Forged Gate Valve Manufacturer

4Matic forged steel gate valves are offered in solid wedge, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. 4Matic forged steel gate valves are manufactured according to API 602 Design.

Range

  • Sizes ½” to 4”
  • Class 800 to Class 2500

Materials
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

Design Features

  • SW, NPT, RF, or BW
  • Outside Screw & Yoke (OS&Y)
  • Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

Design Standard

  • Design & manufacture according to API 602, ASME B16.34
  • End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
  • Test & inspection according to API 598
  • Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

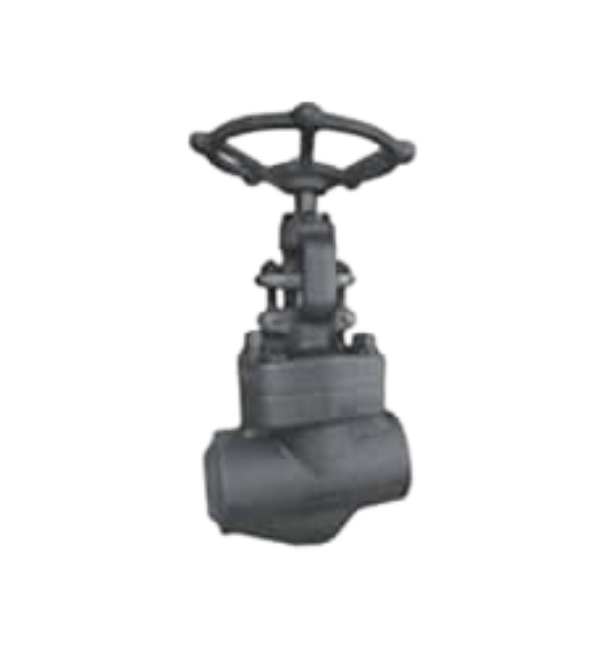

Forged Globe Valve Manufacturer

Forged Gate Valve are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. 4Matic forged steel globe valves are manufactured according to API 602 Design, Forged Gate Valve Supplier in India.

Product Range

  • Sizes ½” to 4”
  • Class 800 to Class 2500

Materials
Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

Design Features

  • SW, NPT, RF, or BW
  • Outside Screw & Yoke (OS&Y)
  • Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

Design Standard

  • Design & manufacture according to API 602, ASME B16.34
  • End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
  • Test & inspection according to API 598
  • Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

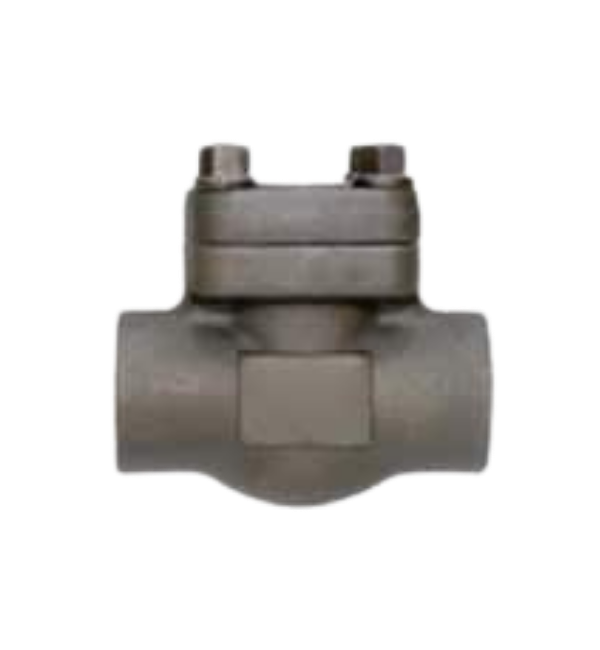

Forged Check Valve Exporter

4Matic forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. 4Matic forged steel check valves are manufactured according to API 602 Design.

Product Range

  • Sizes ½” to 4”
  • Class 800 to Class 2500

Materials
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

forged check valve manufacturers

Design Features

  • Swing Type or Lift (Piston) Type
  • SW, NPT, or BW connections
  • Bolted cover, Welded Cover or Pressure seal cover

Design Standard

  • Design & manufacture according to API 602, ASME B16.34
  • End flanges according to ASME B16.11 (SW), ASME B1.20.1 (NPT),ASME B16.25 (BW)
  • Test & inspection according to API 598
  • Also available per NACE MR-0175, NACE MR-0103

Forged Ball Valve Exporter

  • Material : A105, LF2, LF3, F304, F316, F304L, F316L
  • Design Std : BS 5351, ISO 17292, B16.34
  • End connection std : ASME B16.5, ASME B16.25, ASME B16.11, ASME B1 0.1
  • Test std : API 598
  • Class : 150-2500 1/2″-3″
ball valve manufacturer

Forged Gate Valve Manufacturer and Exporter

4matic global are manufacturers, suppliers, and exporter of forged gate valve in India. Our high-quality range of forged gate valve is exclusively designed for chemical industries, steel factories, petrochemical industry, fire protection systems, paper manufacturing industries, shipment industries, etc. These are designed and developed following international quality standards. We are a leading forged gate valve manufacturer that is precision engineered using the best quality raw material and advanced technology. We also customize forged gate valves as per the requirements of the clients. We manufacture a wide range of precisely engineered forged gate valves, made in compliance with international quality and safety norms. Our forged gate valve is used for controlling the flow, pressure, temperature and liquid levels by fully or partially opening or closing the valve in response to signals received from the controller.
