Gear Box Model : AEA 18 / AEA 20
| Specification | |
| Enclosure | Weatherproof ( IP 65 ) ( IP 67 & IP 68 – Optional ) |
| Lubrication | NLGI – 2 |
| Indicator | Plastic Yellow |
| Paint | Powder Coated |
| Travel | 0 – 90° ±5° Travel |
| Shaft Position | As Shown |
| Hardware | S.S |
| Hand Wheel | AEA 18 – Ø130 / AEA 20 – Ø224 |
| Chain Pully On Request. | |

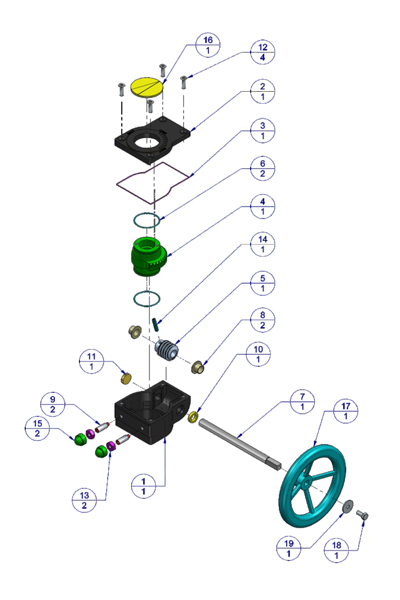

| No. | Description | Material | Qty. |
| 1 | G. B. Housing | Allu. Alloy ALsi – 132 | 01 |
| 2 | G. B. Cover | Allu. Alloy ALsi – 132 | 01 |
| 3 | Body Cover ‘O’ Ring | Nitrile Buna – N Gr. 80 | 01 |
| 4 | Worm Gear | ASTM A 536 Gr. 65-45-12 ( Ductile Iron ) S. G. Iron | 01 |
| 5 | Worm | BS-970-90. EN-8, (080M40) | 01 |
| 6 | ‘O’ Ring Worm Gear | Nitrile Buna – N Gr. 80 | 02 |
| 7 | Shaft | BS 970-90, EN 8, (080M40) | 01 |
| 8 | Shaft Coller | BS 970-90, EN 8, (080M40) | 02 |
| 9 | Adjustable Bolt | S. S. 202 | 02 |
| 10 | Packing Ring | Nitrile Buna – N Gr. 80 | 01 |
| 11 | Packing Bush | Nitrile Buna – N Gr. 80 | 01 |
| 12 | Cover Bolt | S. S. 202 | 04 |
| 13 | Adjustable Nut | S. S. 202 | 02 |
| 14 | Dowel Pin | Spring Steel | 01 |
| 15 | Cap | Nitrile Buna – N Gr. 80 | 02 |
| 16 | Indicator | ABS Resin | 01 |
| 17 | Hand Wheel | Allu. / MS Fabricated | 01 |
| 18 | Hand Wheel Bolt | S. S. 202 | 01 |
| 19 | Hand Wheel Washer | S. S. 202 | 01 |
| AEA – 18 | |
| A | B |
| SQ. 9 X 9 | 12.7 |
| SQ. 11 X 11 | 15.6 |
| SQ. 14 X 14 | 19.8 |
| Model | AEA 18 | AEA 20 |
| Ratio | 40 : 1 | 37 : 1 |
| Rated Output Torque (Nm) | 180 | 300 |
| ISO Flange | F05, F07 | F07, F10 |
| AEA – 20 | |
| A | B |
| SQ. 8 X 8 | 11.3 |
| SQ. 9 X 9 | 12.4 |
| SQ. 11 X 11 | 15.3 |
| SQ. 14 X 14 | 19.6 |
| SQ. 17 X 17 | 23.6 |

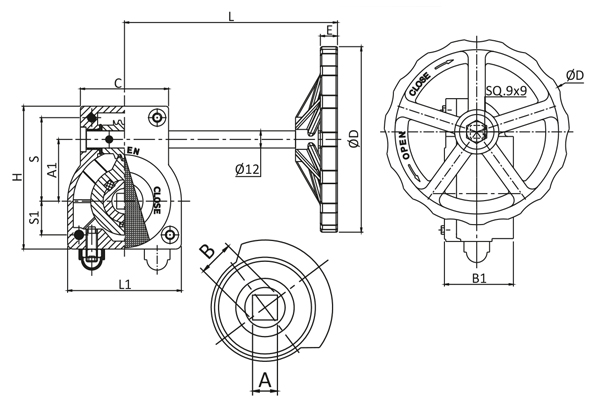

| Dimensions :(All Dimensions are in mm ) | |||||||||||
| Valve Model | L | L1 | H | ØD | S | S1 | C | B1 | A1 | E | *Weight |
| AEA – 18 | 150 | 80 | 100 | 130 | 58.5 | 24 | 82 | 48.5 | 43 | 12 | 1.100 |
| AEA – 20 | 178 | 100 | 115 | 224 | 62 | 33 | 85 | 54 | 50 | 14 | 2.100 |
