2 Way Plug Valve Screwed End

“4M-GLE” Series Pneumatic Actuator Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)

“4Matic” Plug Valves are designed to offer superior performancein various industrial applications. Design inherent reduction in pressure drop leads to higher efficiency and better flow rates. Long service life, unmatched sealing capacity and ease of maintenance thanks to ingenious design make the 4matic plug valves a preferred choice in severeservice conditions.

Size Range : 1/2″ to 2″ (15MM to 50MM)

Standard

Design And Manufacturing API 599 / BS 5353
Valve Face To Face Dimension As Per Mfg Std.
Thred End Standard Conformity ASME B. 1.20.1
Inspection & Testing API 598 / EN 12266-1
Leakage Class CLASS VI ISO – 5208
screwed plug valve exporter screwed plug valve exporter in india
screwed plug valve screwed plug valve
150# DIMENSION
VALVE   MODEL VALVE SIZE L ( SCREWED) WEIGHT ( APPROX)
NB INCH
4M-GLE-15 15 1/2″ 82.5 1.100
4M-GLE-20 20 3/4″ 82.5 1.100
4M-GLE-25 25 1” 118 2.250
4M-GLE-32 32 1.1/4” 118 2.520
4M-GLE-40 40 1.1/2” 140 3.500
4M-GLE-50 50 2” 165 6.150
 All Dimensions are in mm & Weight is  for Bare Shaft only

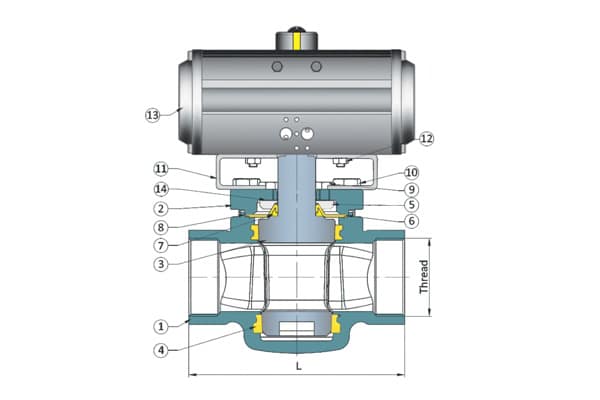

Sr. No. Description MOC
01 Body WCB/CF8/CF8M/CF3M/CD4MCu
02 Cover WCB/CF8/CF8M/CF3M/CD4MCu
03 Plug CF8/CF8M/CF3M/CD4MCu
04 Plug Sleeve PTFE/CFT/GFT
05 Thrust Collar SS 304
06 Diaphragm PTFE/CFT/GFT
07 Wedge Ring PTFE/CFT/GFT
08 Metal Diaphragm SS 304
09 Adjusting Hex Bolt SS 304
10 Body Fitting Hex Bolt SS 304
11 Act.fitting plate SS 304
12 Act.fitting plate Hex Bolt SS 304
13 Actuator STD.
14 Stattic Element SS 304
Note:Special Metal & Higher Alloys available on request
“4M-GLS” Series Hand lever Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)

“4Matic” Plug valves are designed to offer superior performance in various industrial applications Design Inherent reduction in pressure drop leads to higher efficiency and better flow rates. Long service life, unmatched sealing capacity and ease of maintenance thanks to ingenious design make the 4Matic plug valves a preferred choice in severe service conditions.

Size Range : 1/2″to 2″ (15 MM to 50 MM)

Standard

Design And Manufacturing API 599 / BS 5353
Valve Face To Face Dimension As Per Mfg Std.
Thred End Standard Conformity ASME B. 1.20.1
Inspection & Testing API 598 / EN 12266-1
Leakage Class CLASS VI ISO – 5208
valve screw manufacturers in india valve screw manufacturers in india
valve screwed manufacturers in india valve screwed manufacturers in india
150# DIMENSION
VALVE   MODEL VALVE SIZE L ( SCREWED) WEIGHT ( APPROX)
NB INCH
4M-GLS-15 15 1/2″ 82.5 1.100
4M-GLS-20 20 3/4″ 82.5 1.100
4M-GLS-25 25 1” 118 2.250
4M-GLS-32 32 1.1/4” 118 2.520
4M-GLS-40 40 1.1/2” 140 3.500
4M-GLS-50 50 2” 165 6.150
( All Dimensions are in mm & Weight is  for Bare Shaft only)

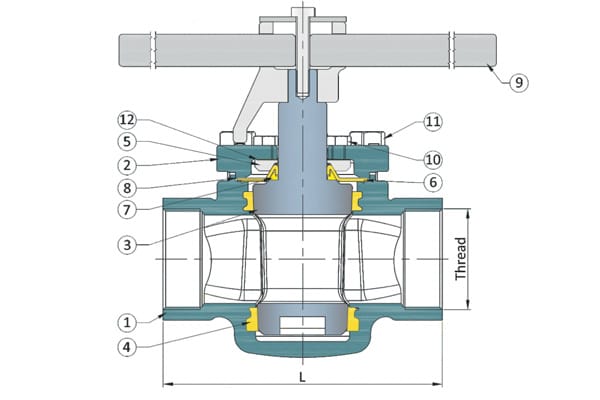

Sr. No. Description MOC
01 Body WCB/CF8/CF8M/CF3M/CD4MCu
02 Cover WCB/CF8/CF8M/CF3M/CD4MCu
03 Plug CF8/CF8M/CF3M/CD4MCu
04 Plug Sleeve PTFE/CFT/GFT
05 Thrust Collar SS 304
06 Diaphragm PTFE/CFT/GFT
07 Wedge Ring PTFE/CFT/GFT
08 Metal Diaphragm SS 304
09 Handle Rod SS 302
10 Adjusting Hex Bolt SS 304
11 Body Fitting Hex Bolt SS 304
12 Static Eleminator SS 304
Note:Special Metal & Higher Alloys available on request
