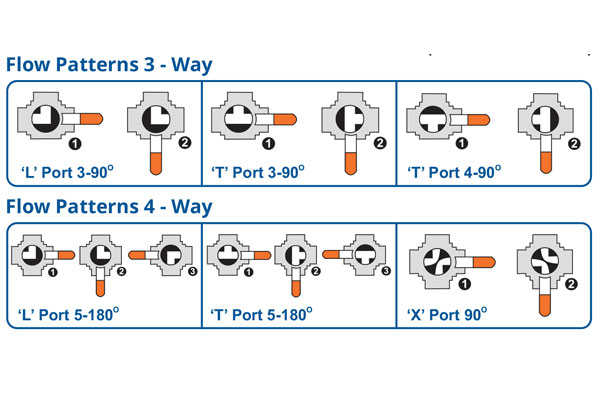

“4Matic” Offers Pneumatic Rotary Actuator Operated “3, 4 & 5 Way” Design Investment Casting CF8 / CF8M / WCB Floating Ball Valve, engineered for multiple Diverting / Mixing Operations in the down stream. TYPE : “T” . PORT / “L” . PORT /“X” . PORT In Full Bore / Reduce Bore.

Size Range : 1/2″ to 4″ Screwed / Flanged / Triclover End

Standard
Design And Manufacturing ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension ASME B 16.10
Flange Standard Conformity ASME B 16.5 Class 150, 300
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Threaded Fitting ASME B 1.20

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

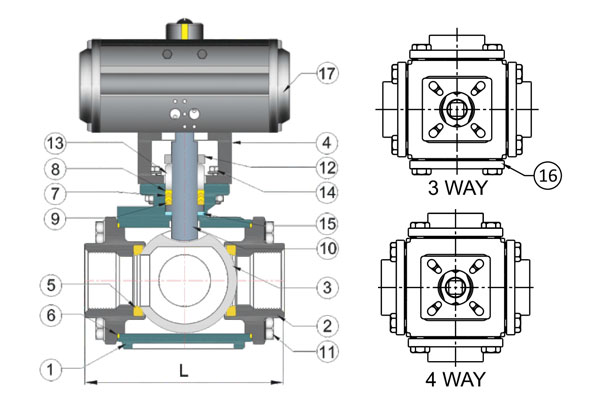

Screwed Dimensions :

Valve Model Valve Size L Weight Approx.
Inch MM 3 Way 4 Way
4M-SUZ – 15 1/2″ 15 104 3.560 3.660
4M-SUZ – 20 3/4″ 20 112 4.060 4.100
4M-SUZ – 25 1″ 25 130 7.040 7.080
4M-SUZ – 32 1.1/4″ 32 153 9.520 9.620
4M-SUZ – 40 1.1/2″ 40 156 12.200 12.340
4M-SUZ – 50 2″ 50 192 20.500 20.740
4M-SUZ – 65 2.1/2″ 65 297 20.960 21.800
4M-SUZ – 80 3″ 80 315 30.380 31.660
4M-SUZ – 100 4″ 100 324 49.110 50.690

(All Dimensions are in mm)

Sr. No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Bracket WCB / CF8 / CF8M
5 Ball Seat PTFE / GFT / CFT / TFM
6 Body Seat PTFE / GFT / CFT / TFM
7 U – Seat PTFE / GFT / CFT / TFM
8 V – Seat PTFE / GFT / CFT / TFM
9 Base Seat PTFE / GFT / CFT / TFM
10 Stem Pin S. S. 304 / S. S. 316
11 Body Fitting Hex Bolt + Washer S. S. 304
12 Gland WCB / CF8 / CF8M
13 Gland Bush S. S. 304 / S. S. 316
14 Bracket Fitting Bolt +  Nut & Washer S. S. 304
15 Stem Packing PTFE / GFT / CFT / TFM
16 Blind End WCB / CF8 / CF8M / CF3M
17 Actuator STD.

Flanged 150# / 300#

Sr. No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Bracket WCB / CF8 / CF8M
5 Ball Seat PTFE / GFT / CFT / TFM
6 Body Seat PTFE / GFT / CFT / TFM
7 U – Seat PTFE / GFT / CFT / TFM
8 V – Seat PTFE / GFT / CFT / TFM
9 Base Seat PTFE / GFT / CFT / TFM
10 Stem Pin S. S. 304 / S. S. 316
11 Body Fitting Hex Bolt + Washer S. S. 304
12 Gland WCB / CF8 / CF8M
13 Gland Bush S. S. 304
14 Bracket Fitting Bolt + Nut & Washer S. S. 304
15 Stem Packing PTFE / GFT / CFT / TFM
16 Blind End CF8 / CF8M
17 Actuator STD.

Flanged Dimensions :

Valve Model Valve Size L1 (F to F) 150# Weight Approx. 300# Weight Approx.
Inch MM 150# 300# 3 Way 4 Way 3 Way 4 Way
4M-SUZ – 15 1/2″ 15 151 160 4.620 5.020 7.200 7.980
4M-SUZ – 20 3/4″ 20 165 177 5.540 6.120 8.980 10.200
4M-SUZ – 25 1″ 25 192 202 9.380 10.220 11.480 13.020
4M-SUZ – 32 1.1/4″ 32 223 221 12.480 13.620 15.040 17.020
4M-SUZ – 40 1.1/2″ 40 220 234 16.080 17.520 22.240 25.640
4M-SUZ – 50 2″ 50 253 274 26.120 28.280 32.240 35.420
4M-SUZ – 65 2.1/2″ 65 295 300 27.260 30.280 —- —-
4M-SUZ – 80 3″ 80 306 327 37.100 40.700 46.540 53.340
4M-SUZ – 100 4″ 100 371 393 60.970 66.630 74.710 84.810

(All Dimensions are in mm)

For Ball Valves Flange Standards Dimension Table :
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
