3Pc.Design Floating Ball Valve

“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating in Three Piece design. Engineered for multiple On/Off operations in the down stream.

Size Range : 1/2″ to 14″ Screwed / Flanged / Socket Weld

Standard
Design And Manufacturing ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension ASME B 16.10
Flange Standard Conformity ASME B 16.5 Class 150 / 300 / 600
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI ISO – 5208

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve
3PC Design Floating Ball Valve 3PC Design Floating Ball Valve
3pc. design floating ball valves 3pc. design floating ball valves

Screwed Dimensions :

Valve Model Valve Size L Weight Approx.
Inch MM
4M-OKE – 15 1/2″ 15 64 1.250
4M-OKE – 20 3/4″ 20 70 1.190
4M-OKE – 25 1″ 25 88 2.200
4M-OKE – 32 1.1/4″ 32 105 2.400
4M-OKE – 40 1.1/2″ 40 114 3.650
4M-OKE – 50 2″ 50 130 5.250
4M-OKE – 65 2.1/2″ 65 170 11.050
4M-OKE – 80 3″ 80 200 13.350
4M-OKE – 100 4″ 100 210 21.250

(All Dimensions are in mm)

Note : We also provide Butt Weld & Socket Weld.

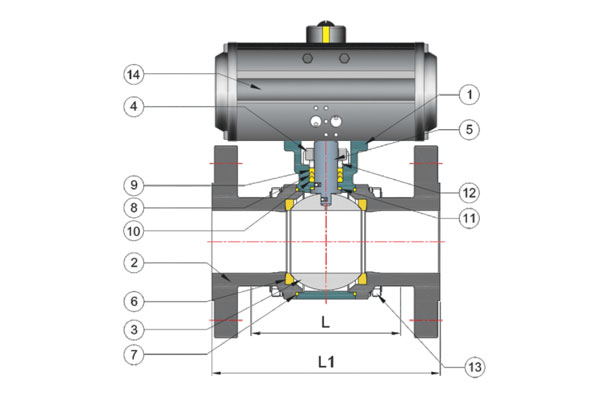

Sr.No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Gland CF8 / CF8M / CF3M
5 Stem Pin S. S. 304 / S. S. 316
6 Ball Seat PTFE / GFT / CFT / TFM
7 Body Seat PTFE / GFT / CFT / TFM
8 U – Seat PTFE / GFT / CFT / TFM
9 V – Seat PTFE / GFT / CFT / TFM
10 Base Seat PTFE / GFT / CFT / TFM
11 Stem Seat PTFE / GFT / CFT / TFM
12 Spacer Ring S. S. 304
13 Stud + Nut + Washer S. S. 304
14 Actuator STD.

Flanged  150# Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-OKS – 15 1/2″ 15 108 2.180
4M-OKS – 20 3/4″ 20 117 3.200
4M-OKS – 25 1″ 25 127 3.925
4M-OKS – 32 1.1/4″ 32 140 4.610
4M-OKS – 40 1.1/2″ 40 165 6.625
4M-OKS – 50 2″ 50 178 9.620
4M-OKS – 65 2.1/2″ 65 190 19.010
4M-OKS – 80 3″ 80 203 22.100
4M-OKS – 100 4″ 100 229 33.120
4M-OKS – 125 5″ 125 254 46.300
4M-OKS – 150 6″ 150 267 62.064
4M-OKS – 200 8″ 200 292 91.750
4M-OKS – 250 10″ 250 330 129.050
4M-OKS – 300 12″ 300 610 400.000
4M-OKS – 350 14″ 350 648 400.000

(All Dimensions are in mm)

Flanged  300# Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-3OKS – 15 1/2″ 15 140 3.200
4M-3OKS – 20 3/4″ 20 152 4.525
4M-3OKS – 25 1″ 25 165 5.900
4M-3OKS – 32 1.1/4″ 32 178 7.180
4M-3OKS – 40 1.1/2″ 40 190 10.800
4M-3OKS – 50 2″ 50 216 15.320
4M-3OKS – 65 2.1/2″ 65 241 24.290
4M-3OKS – 80 3″ 80 282 30.090
4M-3OKS – 100 4″ 100 305 46.900
4M-3OKS – 125 5″ 125 381 66.730
4M-3OKS – 150 6″ 150 403 92.750
4M-3OKS – 200 8″ 200 419 139.050
4M-3OKS – 250 10″ 250 457 219.000
4M-3OKS – 300 12″ 300 648 450.000
4M-3OKS – 350 14″ 350 765 450.000

(All Dimensions are in mm)

For Ball Valves Flange Standards Dimension Table :
ball valve manufacturer in ahmedabad ball valve manufacturer in ahmedabad
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
