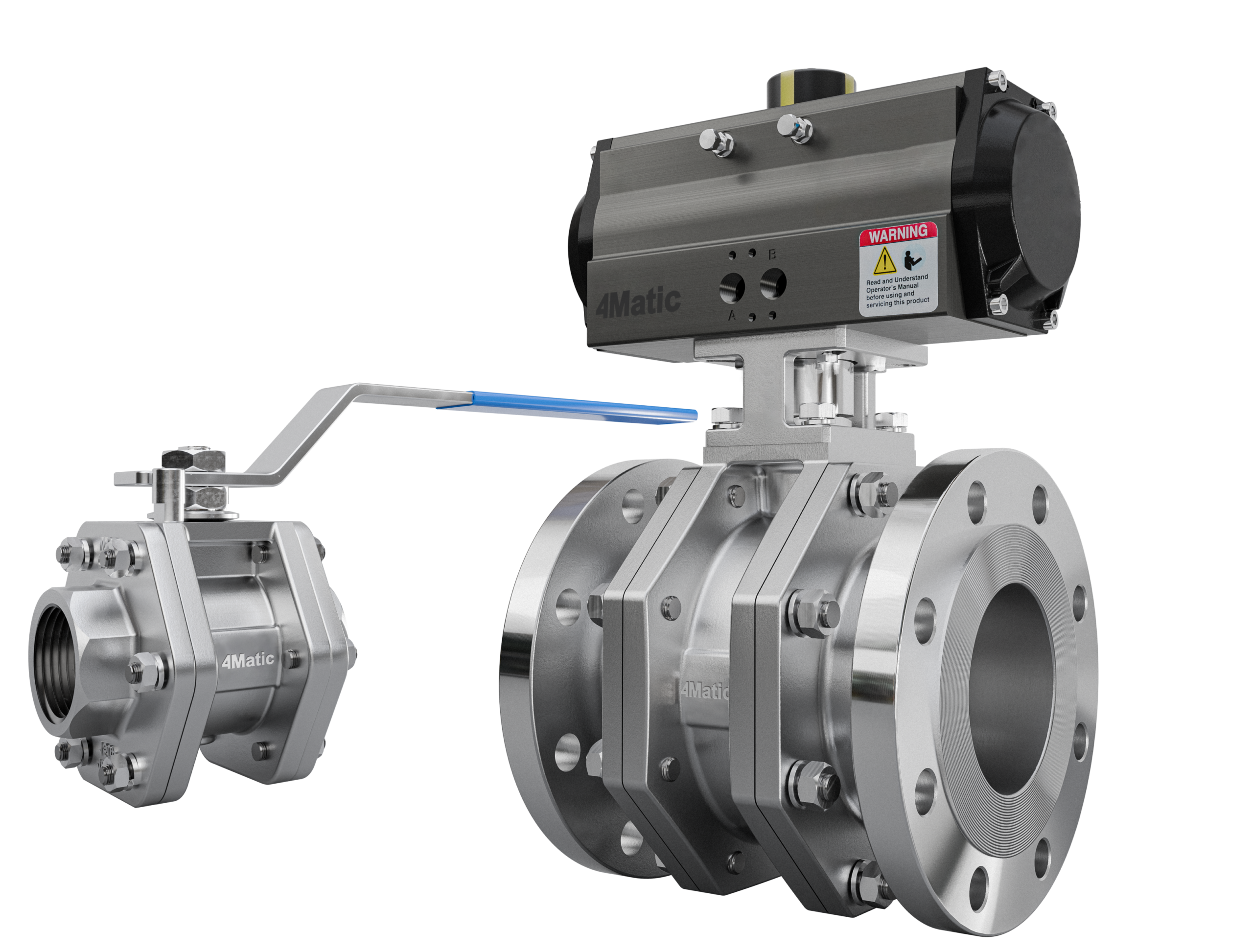

3Pc. Design Metal to Metal Floating Ball Valve

“4Matic” Offers Pneumatic Actuator Operated Metal Seated Floating Ball Valve designed for using in the several conditions such as high temperature & high friction fluid like abrasive fluids of Oil & Gas, Petroleum, Petrochemical, Chemical Power Generation, Pulp & Paper, Mining Industry

Size Range : 1/2″ to 4″ Screwed / Flanged

Standard
Design And Manufacturing BS EN ISO 17292 / ASME B16.34
Valve Face To Face Dimension ASME B 16.10
Flange Standard Conformity ASME B 16.5 Class 150# / 300# / 600#
Inspection & Testing API 598 / ISO – 5208
Leakage Class Class IV to V

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

Extra Coating Details On Ball & Ball Seat

Coating Material Maximum Temperature
Tungsten Carbide (WC-CO) -200°C to 450°C ( On Request)
Tungsten Chromium Carbide (WC-COCRC) -50°C to 300°C ( On Request)
Chromium Carbide (Cr7C3+25%NICr) -200°C to 800°C ( On Request)
Hard (Trivalent Chromium) (HCr) -50°C to 450°C ( On Request)
Nickle Chrome Boron Silica (NiCrBSi) -200°C to 700°C ( On Request)
Electroless Nickel Plating (ENP) -50°C to 450°C ( On Request)
Stellite – 6 (CoCrWC) 1200°C ( On Request)
Nitriding & Lapping 450°C ( Regular )
floating ball valve manufacturers floating ball valve manufacturers
3Pc.Design Metal to Metal Floating Ball Valve 3Pc.Design Metal to Metal Floating Ball Valve

Screwed Dimensions :

Valve Model Valve Size L Weight Approx.
Inch MM
4M-BMS – 15 1/2″ 15 71 3.700
4M-BMS – 20 3/4″ 20 94 4.700
4M-BMS – 25 1″ 25 108.5 6.500
4M-BMS – 32 1.1/4″ 32 116 7.200
4M-BMS – 40 1.1/2″ 40 128 8.500
4M-BMS – 50 2″ 50 158 13.850
4M-BMS – 65 2.1/2″ 65 185 20.700
4M-BMS – 80 3″ 80 205 29.200
4M-BMS – 100 4″ 100 239 43.900

(All Dimensions are in mm)

Flanged   Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-BMF – 15 1/2″ 15 108 4.350
4M-BMF – 20 3/4″ 20 117 5.950
4M-BMF – 25 1″ 25 127 7.700
4M-BMF – 32 1.1/4″ 32 140 8.850
4M-BMF – 40 1.1/2″ 40 165 10.650
4M-BMF – 50 2″ 50 178 15.000
4M-BMF – 65 2.1/2″ 65 190 27.300
4M-BMF – 80 3″ 80 203 36.550
4M-BMF – 100 4″ 100 229 51.900

(All Dimensions are in mm)

Note : Big Sizes 5″ to 10″ On Request. / Note : 300# & 600# Dimension are On Request.

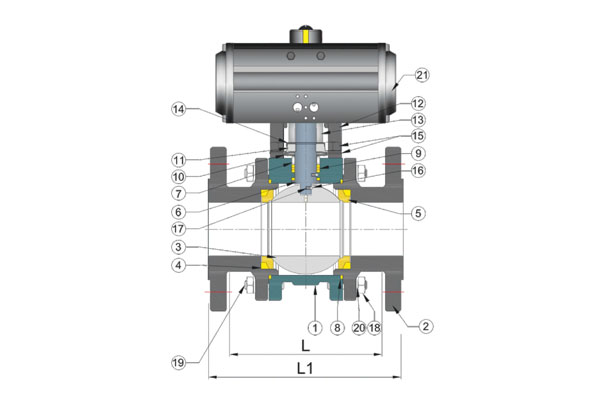

Sr. No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Ball Back Seat CFT
5 Ball Seat S.S. 304 / 316
6 Stem Pin S.S. 304 / 316
7 Spacer Ring S.S. 304 / 316
8 Body Seat CFT
9 Stem Seat CFT
10 Disc Spring Spring Steel
11 Steam Nut S. S. 304
12 Bracket WCB / CF8 / CF8M / CF3M
13 Adaptor S. S. 304
14 Lock Washer S. S. 304
15 Bracket Fitting Hex Bolt + Spring Washer S. S. 304
16 Antistatic Ball S. S. 304
17 Antistatic Spring S. S. 302
18 Fitting Nut H. T. / S. S. 304
19 Fitting Stud H. T. / S. S. 304
20 Spring Washer H. T. / S. S. 304
21 Actuator STD.
For Ball Valves Flange Standards Dimension Table :
ball valve manufacturer in ahmedabad ball valve manufacturer in ahmedabad
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
