3Pc. Design Triclover End Floating Ball Valve

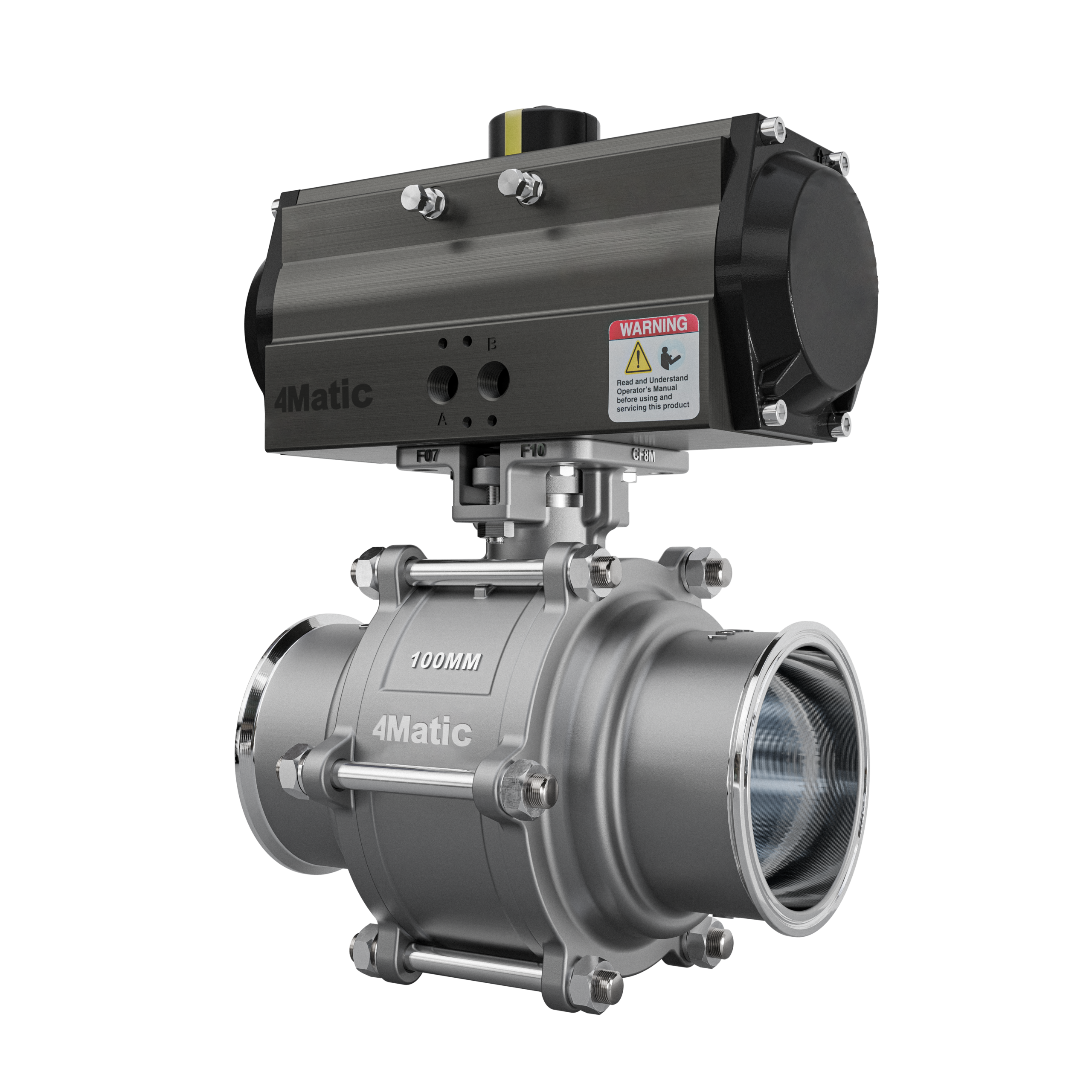

“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Floating Ball Valve in Three Piece design. Engineered for On / Off operation in the down stream.

Size Range : 1/2″ to 4″ Triclover Ends

Standard
Design And Manufacturing ASME B 16.34 / BS EN ISO 17292/td>
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI ISO – 5208

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve
3 Piece Design Triclover End Ball Valve in India 3 Piece Design Triclover End Ball Valve in India
3 Piece Design Triclover End Ball Valve in India 3 Piece Design Triclover End Ball Valve in India

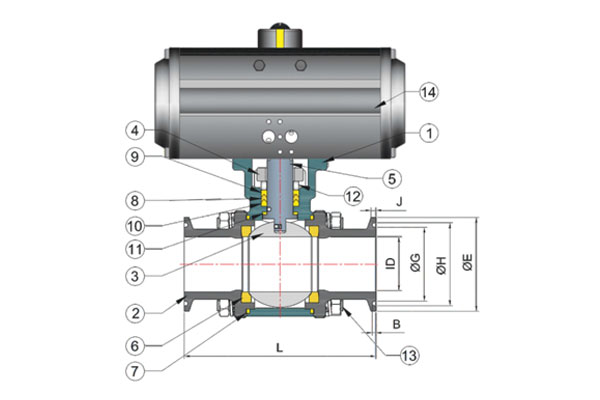

Dimensions :

Valve Model Valve Size L ID ØG ØH ØE J B Weight Approx.
Inch MM
4M-OKP – 15 1/2″ 15 65 13 24.55 30.45 34 2.85 1.6 1.285
4M-OKP – 20 3/4″ 20 70 19 24.55 30.45 34 2.85 1.6 1.880
4M-OKP – 25 1″ 25 88 25 40.55 46.45 50.5 2.85 1.6 2.175
4M-OKP – 32 1.1/4″ 32 105 32 40.55 46.45 50.5 2.85 1.6 2.450
4M-OKP – 40 1.1/2″ 40 114 32 40.55 46.45 50.5 2.85 1.6 3.600
4M-OKP – 50 2″ 50 130 42.5 53.55 59.45 64 2.85 1.6 5.050
4M-OKP – 65 2.1/2″ 65 170 62 80.55 86.45 91 2.85 1.6 12.080
4M-OKP – 80 3″ 80 200 74 94.05 99.95 106 2.85 1.6 13.900
4M-OKP – 100 4″ 100 210 100 107.05 112.95 119 2.85 1.6 21.900
Sr. No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Gland CF8 / CF8M / CF3M
5 Stem Pin S. S. 304 / S. S. 316
6 Ball Seat PTFE / GFT / CFT / TFM
7 Body Seat PTFE / GFT / CFT / TFM
8 U – Seat PTFE / GFT / CFT / TFM
9 V – Seat PTFE / GFT / CFT / TFM
10 Base Seat PTFE / GFT / CFT / TFM
11 Stem Seat PTFE / GFT / CFT / TFM
12 Spacer Ring S. S. 304
13 Body Fitting Stud + Nut + Washer S. S. 304
14 Actuator STD.
