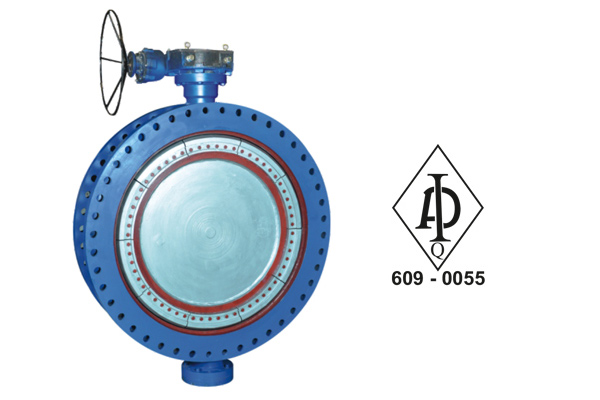

Gear Operated MS Fabricated Double Flange Butterfly Valve
“4Matic” Gear Operated MS Fabricated Double Flange Butterfly Valve, High Performance Butterfly Valve, high performance butterfly valve manufacturers Construction engineered
for multiply ON / OFF Operation in the large Pipe line and full flow down Stream.
Size Range : : 50″ to 104″ (12″ to 48″ On Request)
| PRESSURE / TEMPERATURE RATING | |
| PRESSURE RATING | PN 10 |
| OPERATING TEMPERATURE | 180 °C |
| Standard | |
| Design And Manufacturing | AWWA C – 504 |
| Valve Face to Face Dimension Upto 72″ | AWWA C – 504 |
| Valve Face to Face Dimension Upto 72″ | As Per Manufacturer Standard |
| Flange Standard Conformity Inspection & Testing | AWWA C – 207 Class “D” AWWA C – 504 |
| Rating | PN 6 / PN 10 |

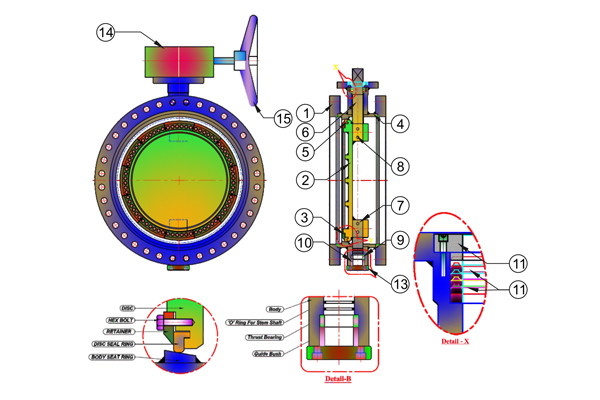

| No. | Description | Material |
| 1 | Body | IS 2062 Gr. B M. S. |
| 2 | Disc | IS 2062 Gr. B M. S. |
| 3 | Retainer | IS 2062 Gr. B / ASTM A – 240 S.S. 304 / 316 |
| 4 | Body Seat Ring | ASTM A – 479 Type 304 / 316 |
| 5 | Disc Seal Ring | EPDM / NBR / Viton |
| 6 | Shaft | ASTM A – 479 Type 410 / 304 / 316 |
| 7 | Stem Shaft | ASTM A – 479 Type 410 / 304 / 316 |
| 8 | Disc Pin | ASTM A – 479 Type 410 / 304 / 316 |
| 9 | Bearing | Double Thrust Bearing |
| 10 | Guide Bush | Bronze |
| 11 | Seal Set | EPDM / NBR / Viton |
| 12 | Gland Plate | M. S. |
| 13 | Stem Plate | IS 2062 Gr. B |
| 14 | Gear | Standard |
| 15 | Wheel | M. S. |

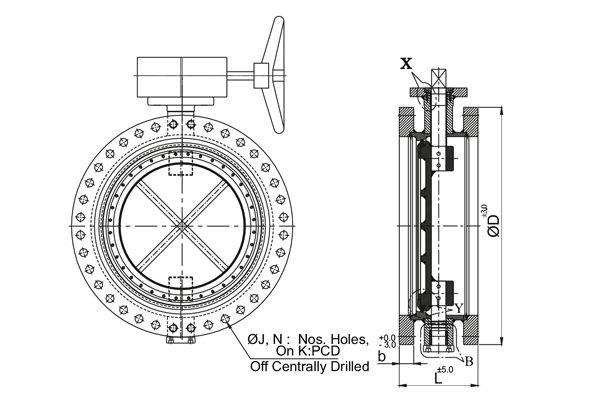

| Dimensions : (All Dimensions are in mm) | ||||||||
| Valve Model | Valve Size | L | ØD | B | ØJ | N | K:PCD | |
| MM | Inch | |||||||
| 4M-FBV – 1250 | 1250 | 50″ | 381 | 1568.5 | 51.00 | 44.45 | 44 | 1479.6 |
| 4M-FBV – 1300 | 1300 | 52″ | 381 | 1626.0 | 51.00 | 44.45 | 44 | 1536.7 |
| 4M-FBV – 1350 | 1350 | 54″ | 381 | 1682.8 | 54.00 | 44.45 | 44 | 1593.8 |
| 4M-FBV – 1400 | 1400 | 56″ | 381 | 1770.0 | 57.15 | 44.45 | 52 | 1670.0 |
| 4M-FBV – 1500 | 1500 | 60″ | 381 | 1854.2 | 57.15 | 44.45 | 52 | 1758.95 |
| 4M-FBV – 1600 | 1600 | 64″ | 381 | 1915.0 | 60.00 | 44.45 | 52 | 1820.0 |
| 4M-FBV – 1650 | 1650 | 66″ | 457 | 2032.0 | 63.5 | 44.45 | 52 | 1930.4 |
| 4M-FBV – 1800 | 1800 | 72″ | 457 | 2197.1 | 66.5 | 44.45 | 60 | 2095.5 |
| 4M-FBV – 1950 | 1950 | 78″ | 760 | 2362.2 | 69.9 | 50.8 | 64 | 2260.6 |
| 4M-FBV – 2000 | 2000 | 80″ | 760 | 2449.0 | 70.00 | 50.8 | 64 | 2342.0 |
| 4M-FBV – 2100 | 2100 | 84″ | 830 | 2533.7 | 73.00 | 50.8 | 64 | 2425.7 |
| 4M-FBV – 2200 | 2200 | 88″ | 830 | 2800.0 | 77.00 | 58.0 | 68 | 2673.5 |
| 4M-FBV – 2400 | 2400 | 96″ | 910 | 2876.6 | 82.6 | 58.0 | 68 | 2755.9 |
| 4M-FBV – 2500 | 2500 | 100″ | 990 | 3048.0 | 82.6 | 63.5 | 72 | 2908.3 |
| 4M-FBV – 2600 | 2600 | 104″ | 990 | 3138.0 | 86.00 | 63.5 | 72 | 2994 |
