“4Matic” Offers Pneumatic Actuator Operated Wafer Type Full Bore Flush Bottom Floating Ball Valve. The FBB Series Flush Bottom Ball Valve incorporates all the benefits of ball valve negluting the disadvantage of conventional flush bottom valve. FBB Series valve incorporates the geometric design mounting pad, allowing a smooth flow and prevent stagnating of the media. Gases, Fluids, Emulsion, Syrup, Paints, Food Products etc…

Size Range : 2” & 3” Flanged

Standard
Design And Manufacturer ASME B 16.34
Valve Face To Face Dimension AS Per Manufacturer std.
Flange Standard Conformity ASME B 16.5 Class 150 / 300
Inspection & Testing ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI SC – 5208

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

Dimensions :

Valve Model       Valve Size L Weight Approx.
Inch MM
4M-FBB – 50 2” 50 90 9.000
4M-FBB – 80 3” 80 122 20.000

(All Dimensions are in mm)

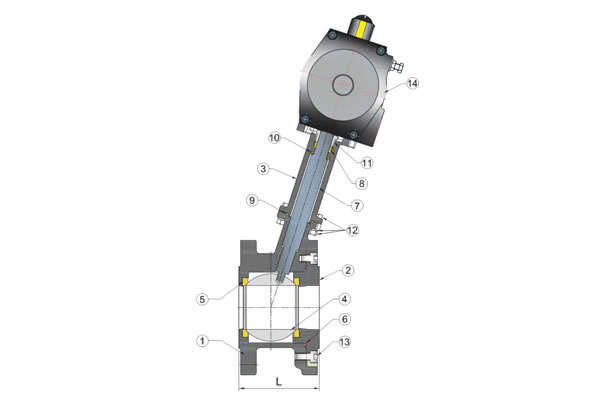

Sr. No. Description Material
1 Body WCB/CF8/CF8M/CF3M
2 Connector WCB/CF8/CF8M/CF3M
3 Bonnet (100MM EXTENDED) WCB/CF8/CF8M/CF3M
4 Ball CF8/CF8M/CF3M
5 Ball Seat PTFE/CFT/GFT
6 Body Seat PTFE/CFT/GFT
7 Steam Pin S.S. 304 / 316
8 Steam Seat PTFE/CFT/GFT
9 Body Bonnet Seat PTFE/CFT/GFT
10 Disc Spring Spring Steel
11 Lock Nut S.S. 304
12 Bonnet Fitting Bolt + Nut + Washer S.S. 304
13 LN Bolt For Body + Connector Fitting S.S. 304
14 Actuator STD.
For Ball Valves Flange Standards Dimension Table :
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
