Flush Bottom Reduce Bore Floating Ball Valve

“4Matic” Offers Pneumatic Actuator Operated Flush Bottom Reduce bore ball valve designed for using in the several condition such as Application : Filter dryer, Vacuum dryer, Stirrer vessel, Rector, Other Vessel, Chemical, Pharmaceutical, Food, Cosmetics, Fluids, Flush Bottom Ball Valve, Emulsion, Syrup, Paints, Food Product Chocolate etc…

Size Range : 3” & 12” Flanged

Standard
Design And Manufacturer ASME B 16.34
Valve Face To Face Dimension AS Per Manufacturer std.
Flange Standard Conformity ASME B 16.5 Class 150 / 300
Inspection & Testing ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI SC – 5208

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

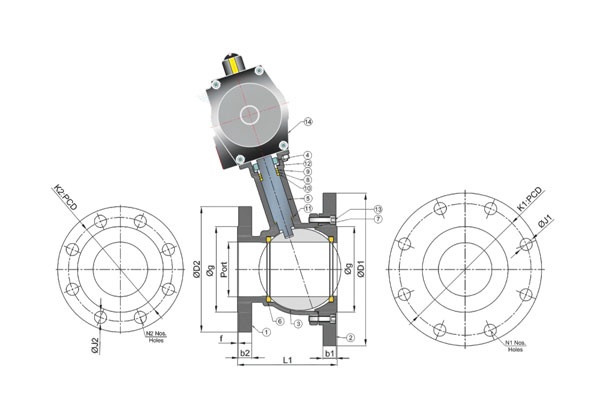

 Flush Bottom Reduce Bore Floating Ball Valve
 Flush Bottom Reduce Bore Floating Ball Valve

Dimensions :

Valve Model       Valve Size L Weight Approx.
Inch MM
4M-FRB – 80 3” X 2.1/2” 80 X 65 140 On Request
4M-FBB – 100 4” X 3” 100 X 80 154
4M-FRB – 150 6” X 4” 150 X 100 183
4M-FBB – 200 8” X 6” 200 X 150 231
4M-FRB – 250 10” X 8” 250 X 200 274
4M-FBB – 300 12” X 10” 300 X 250 330

(All Dimensions are in mm)

Sr. No. Description Material
1 Body WCB/CF8/CF8M/CF3M
2 Connector WCB/CF8/CF8M/CF3M
3 Ball CF8/CF8M/CF3M
4 Gland CF8/CF8M/CF3M
5 Stem pin S.S. 304 / S. S. 316
6 Ball Seat PTFE/CFT/GFT
7 Body Seat PTFE/CFT/GFT
8 U – Seat PTFE/CFT/GFT
9 V – Seat PTFE/CFT/GFT
10 Base Seat PTFE/CFT/GFT
11 Stem Seat PTFE/CFT/GFT
12 Spacer Ring S.S. 304
13 Body Fitting L. N. Bolt S.S. 304
14 Actuator STD.
For Ball Valves Flange Standards Dimension Table :
ball valve manufacturer in ahmedabad ball valve manufacturer in ahmedabad
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
