“4Matic”Offers Pneumatic Actuator Operated Low Torque High Pressure Floating Ball Valve. This range offers reliable option of high pressure application. These valve are recommended for the use in Oil, Gas, Petrochemicals where the long life is required.
Size Range : 1/2″ to 2″ Screwed (BSP / NPT Thread)
| Size | Seat | Working Pressure | Hydro Body | Hydro Seat | Pneumatic Pressure |
| 1/2” to 2” | PEEK | 200 Kg/cm² | 300 Kg/cm² | 220 Kg/cm² | 10 Kg/cm² |
| 1/2” to 2” | CFT | 100 Kg/cm² | 300 Kg/cm² | 100 Kg/cm² | 10 Kg/cm² |
Accessories
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve
Dimensions :
| Valve Model | Valve Size | L | ØC Bore |
&ØD |
Weight Approx. |
|
| Inch | MM | |||||
| 4M-WOG – 15 | 1/2″ | 15 | 98 | 12.5 | 39 | 2.530 |
| 4M-WOG – 20 | 3/4″ | 20 | 108 | 18 | 48 | 3.440 |
| 4M-WOG – 25 | 1″ | 25 | 108 | 22 | 55.5 | 4.100 |
| 4M-WOG – 32 | 1.1/4″ | 32 | 133 | 32 | 76.5 | 8.150 |
| 4M-WOG – 40 | 1.1/2″ | 40 | 133 | 32 | 76.5 | 7.580 |
| 4M-WOG – 50 | 50 2″ | 50 | 159 | 38 | 89.5 | 13.790 |
(All Dimensions are in mm)

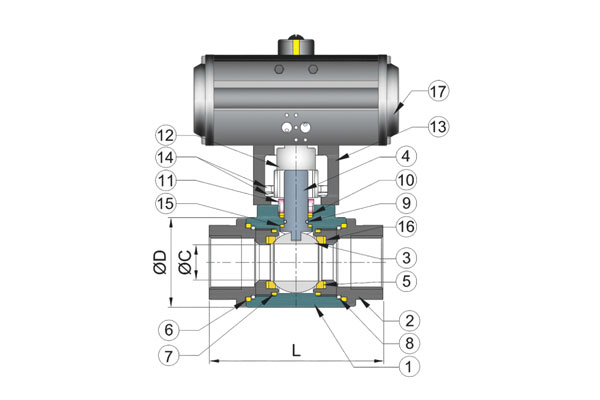

| Sr.No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Ball | S.S.304 / 316 |
| 4 | Stem Pin | S.S.304 / 316 |
| 5 | Ball Seat | PEEK |
| 6 | Body Seat | CFT |
| 7 | Conn Seat | CFT |
| 8 | Conn ’01- Ring | NBR |
| 9 | Stem ‘0’ – Ring | NBR |
| 10 | Stem Seat | CFT |
| 11 | Lock Bush | S.S.304 / 316 |
| 12 | Adaptor | S.S.304 |
| 13 | Bracket | WCB / CF8 / CF8M |
| 14 | Bracket Fitting Bolt & Washer | S.S.304 |
| 15 | Stem Bottom Seat | CFT |
| 16 | Ball Secondary Seat | CFT |
| 17 | Actuator | STD. |
