4MXPO Series
Pharma Butterfly Valves
Size Range : 1 – 12″
Description

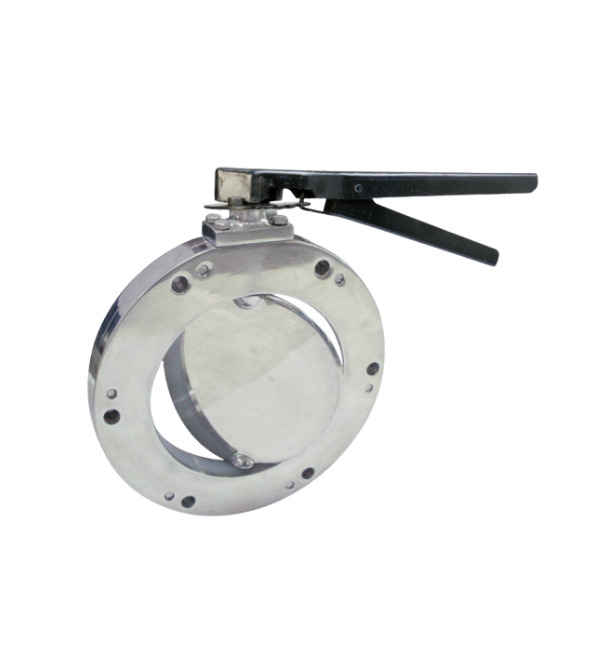

Pharmaceutical grade, ultra-sanitary butterfly valves for the control of dry bulk materials. Meeting the stringent requirements of the pharmaceutical, cosmetic, biotech, food and fine chemical industries. Sleek design offers weight and space utilization. One piece crevice free disc, polished to mirror finish to maximize flow and easy maintenance. Valve operating options includes Lever Handle, Gear Operator, Chain Wheel, Air Actuated, Electric Actuated, Modulating Control.
Technical Specification
- Pressure / Temperature Rating :
-
Working Pressure : MAX. 3 TO 4 KG/CM2
Operating Temperature : -50°C TO +400°C - Body : WCB / CF8 / CF8M
- Disc : WCB / CF8 / CF8M
- Seat : Silicon / Viton
- Bracket : SS
- Handle : SS / Aluminium
Pharma Series Butterfly Valve
Size Range : : 2.1/2″ to 16″
| PRESSURE / TEMPERATURE RATING | |
| PRESSURE RATING | MAX. 3 TO 4 KG/CM2 |
| OPERATING TEMPERATURE | -50 °C TO + 400 °C |

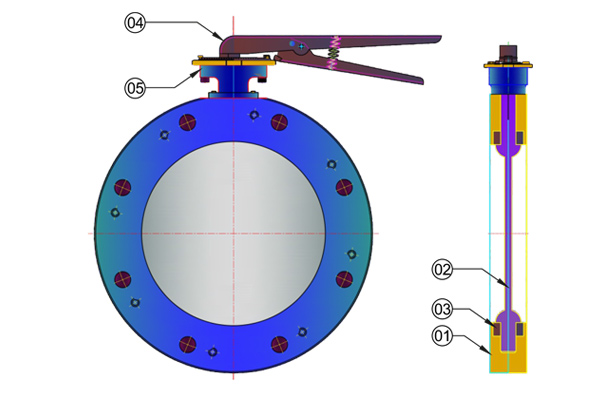

| No. | Description | Material | Qty. |
| 1 | Body | WCB / CF8 / CF8M | 01 |
| 2 | Disc | WCB / CF8 / CF8M | 01 |
| 3 | Seat | Silicon / Viton | 01 |
| 4 | Bracket | S.S. | 01 |
| 5 | Handle | S.S. / Alluminium. | 01 |

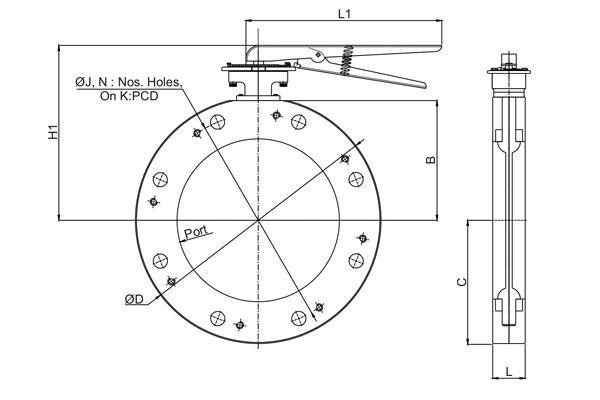

| Dimensions : (All Dimensions are in mm) | ||||||||||
| Valve Model | Valve Size | Port | L | ØD | N | ØJ | K:PCD | B | C | |
| MM | Inch | |||||||||
| 4M-XPO – 65 | 65 | 2.1/2″ | 65 | 26 | 178 | 4 | 19.05 | 139.7 | —- | —- |
| 4M-XPO – 80 | 80 | 3″ | 80 | 26 | 190 | 4 | 19.05 | 152.4 | —- | —- |
| 4M-XPO – 100 | 100 | 4″ | 100 | 28 | 150 | 4 | 9 | 134 | —- | —- |
| 4M-XPO – 150 | 150 | 6″ | 150 | 30 | 227 | 6 | 11 | 202.8 | 111 | 113.5 |
| 4M-XPO – 200 | 200 | 8″ | 200 | 30 | 285 | 6 | 9.5 | 264 | 137 | 139.5 |
| 4M-XPO – 250 | 250 | 10″ | 250 | 32 | 354.5 | 6 | 11 | 327 | 173 | 177.25 |
| 4M-XPO – 300 | 300 | 12″ | 300 | 35 | 405 | 8 | 13.5 | 378 | 199 | 202.5 |
| 4M-XPO – 350 | 350 | 14″ | 350 | 40 | 527 | 12 | 25.4 | 469.9 | 260.5 | 261 |
| 4M-XPO – 400 | 400 | 16″ | 400 | 40 | 577.9 | 12 | 25.4 | 520.7 | 285 | 290 |
