PVC Single Piece Wafer Check Valve

“4Matic” Make PVC single piece Wafer Check Valve is common type PVC Check Valve, it is simple structure, small weight, easy to installation, and convenient to maintenance, this plastic wafer Check Valve is widely used in water system, especially in swimming pool, water treatment, irrigation, finish farm, etc.

4Matic offer PVC Wafer Check Valve with the specifications as follows :

Basic Info
Pressure Low Pressure
Function Nrvg Silence
Flow Direction Uni-direction
Standard DIN, DIN , ANSI, JIS, CNS
Application Industrial Usage
Material PVC, UPVC
Sealing Form O Ring
Size DN15~DN300
Connection Wafer
Structure Swing
PVC Single Piece Wafer Check Valve PVC Single Piece Wafer Check Valve

Product Description :

  • Size: DN80~DN300 (3 inch ~ 12 inch)
  • Connection as per: DIN PN10; ANSI CL150; JIS 10K
  • Body Material: PVC-U
  • Seal material: EPDM
  • Design pressure: 1.0Mpa(PN10 bar)

Feature Of Valve :

  • All the parts that will touch medium is made from thermoplastic and rubber
  • Suitable for horizontal installation
  •  Simple structure is easy for installation and replace.
  •  Flange assembled type by socket connection is optional

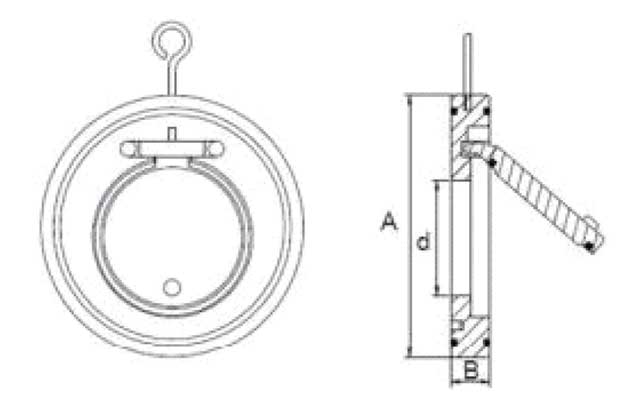

Dimensions :

Valve Size A B D
3″ (80 mm) 140 23 27
4″ (100 mm) 160 23 62
5″ (125 mm) 192 24 83
6″ (150 mm) 218 26 105
8″ (200 mm) 273 34 140
10″ (250 mm) 328 40 170
12″ (300 mm) 380 45 220
SR. NO. PART MATERIAL
1 Body UPVC
2 Seal EPDM
3 Cover ABS
PVC Single Piece Wafer Check Valve PVC Single Piece Wafer Check Valve
