“4Matic” Make Foot Valve is also named bottom valve, it prevent medium back flow, mainly used in pumps and other equipment. Foot valve is a socket connection foot valve, ball type from size 1/2″ to 8″, material made by PVC and PP. Socket end as per standard DIN, ANSI, JIS, CNS. PVC Foot Valve is widely used in water treatment, agriculture irrigation and water supply.
Foot valve has the following specifications and features:
| Specification | |
| Size | DN 15 ~ DN 80 (1/2 Inch ~ 3 Inch) |
| Body Material | PVC-U, PVC-C, PP-H |
| Seal Material | EPDM |
| Socket Connection | DIN, ANSI, JIS, CNS |
| Design Pressure | 1.0 Mpa (PN 10 Bar) |

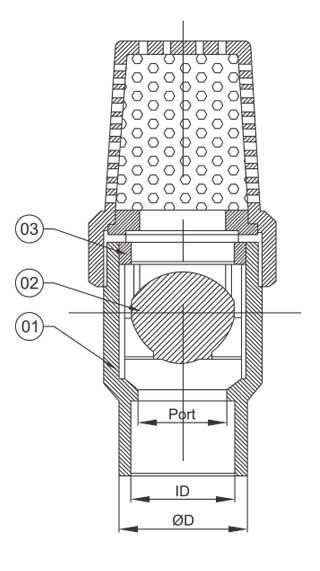

Dimensions :
| Valve Size | Port ±1 mm |
ID ±2 mm |
ØD ±2 mm |
| 3/4″ (20 mm) | 26.57 | 26.87 | 35 |
| 1″ (25 mm) | 33.27 | 33.65 | 43 |
| 1.1/4″ (32mm) | 42.04 | 42.42 | 53 |
| 1.1/2″ (40 mm) | 48.11 | 48.56 | 62 |
| 2″ (50 mm) | 60.17 | 60.63 | 75 |
| 2.1/2″ (65 mm) | 72.85 | 73.38 | 91 |
| 3″ (80 mm) | 88.70 | 89.31 | 110 |
| 4″ (100 mm) | 114.1 | 114.76 | 135 |
| 6″ (150 mm) | 164.6 | 166.2 | 193 |
| Sr. No. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Ball | UPVC |
| 3 | Seat | EPDM |
Feature Of Valve :
- Single union basket design easy to replace the inner parts of valves.
- Hollow ball design make the valve seal better.
- Simple structure make it easy to diagnose problem and repair valve.
- Flange end is optional.
