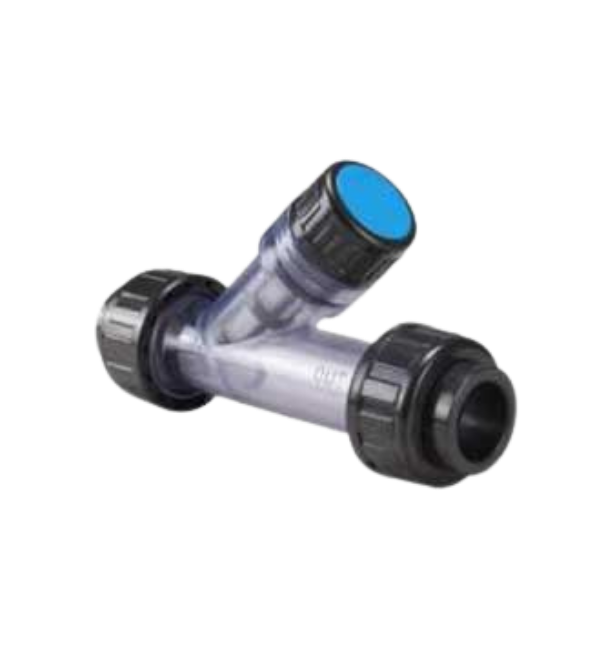

“4Matic” Make Y type Plastic Strainer For Industrial application, it is made by material PVC with EPDM seal and PP screen, PVC Y type Strainer size from 20mm to 110mm with socket end and flange connection as per standard DIN, ANSI, JIS, CNS. PVC Y Strainer is widely used for chemical industrial, water treatment, water supply, etc.
PVC Y strainer have the following specification and features :
| Specification | |
| Size | DN 15 ~ DN 100 (1/2 Inch ~ 4 Inch) |
| Connection | Flanged, Socket, Thread |
| Body Material | PVC – U |
| Screen Material | PP, Stainless Steel |
| Design Pressure | 1.0 Mpa (PN 10 Bar) |

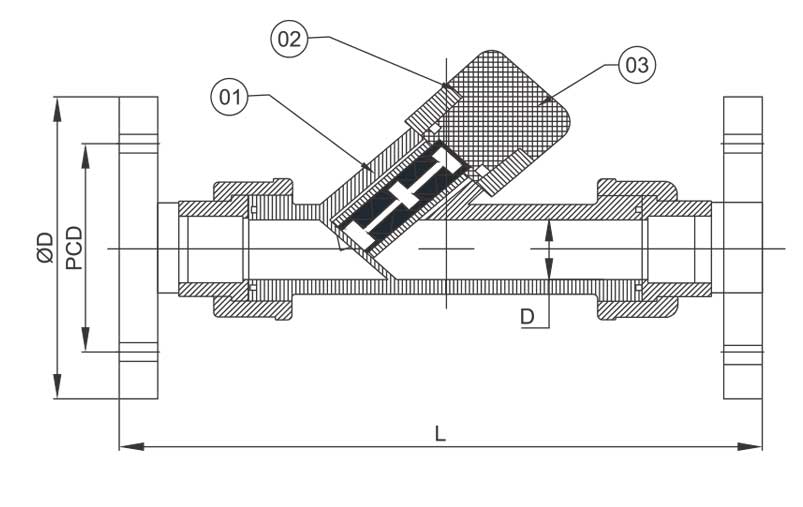

Dimensions :
|
Valve Size |
L ±2mm |
ØD ±3mm |
D ±1mm |
N-Ø |
PCD ±1mm |
| 1/2″ (15 mm) | 178 | 95 | 21.23 | 4-15 | 60.3 |
| 3/4″ (20 mm) | 198.4 | 100 | 26.57 | 4-15 | 70 |
| 1″ (25 mm) | 223.2 | 125 | 33.27 | 4-16 | 79.4 |
| 1.1/4″ (32mm) | 240 | 139 | 42.04 | 4-16 | 88.9 |
| 1.1/2″ (40 mm) | 294 | 140 | 48.11 | 4-19 | 98.4 |
| 2″ (50 mm) | 346 | 165 | 60.17 | 4-19 | 120.7 |
| 2.1/2″ (65 mm) | 424.6 | 175 | 72.85 | 4-19 | 139.5 |
| 3″ (80 mm) | 480 | 200 | 88.70 | 4-19 | 152.4 |
| 4″ (100 mm) | 512 | 220 | 114.1 | 4-19 | 190.5 |
| Sr. No. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Seal | EPDM |
| 3 | Cover | ABS |
Feature Of Valve :
- Transparent PVC body is convenient to observe the medium.
- Screen can be taken out and clean.
- Union design is convenient to install and replace the strainer.
- Suitable for horizontal and vertical installation.
- Stainless steel screen is optional.
