Size Range : 1/2″ to 4″ Screwed / Flanged
Function
Safety valves are used on Pressure equipments, Containers or Pipeline as over Pressure in the equipment increases and exceeds allowance, the valve can automatically open to discharge some mediums to prevent the pressure keeping raised. When the pressure decreases till to the stipulated value, the valve can close in time to avoid the pressure too much reduced, so that normal production will be carried out.

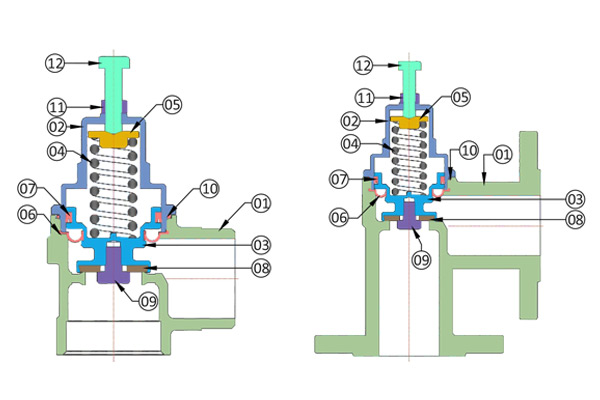

| No. | Description | Material | Qty. |
| 01 | Body Screwed | WCB / CF8 / CF8M | 01 |
| 02 | Bonnet | WCB / CF8 / CF8M | 01 |
| 03 | Balanced Piston | CF8 / CF8M | 01 |
| 04 | Adjusting Ring | S. S. 304 | 01 |
| 05 | Adjusting Bolt | S. S. 304 | 01 |
| 06 | Adjusting Lock Nut | M. S. | 01 |
| 07 | Stem | S. S. 304 | 01 |
| 08 | Flat Washer | M. S. | 01 |
| 09 | Spring | S. S. 302 | 01 |
| 10 | Spring Guide | S. S. 304 | 02 |
| 11 | Lock Screw | S. S. 304 | 01 |
| 12 | Cap | CF8 / CF8M | 01 |
| 13 | Lifting Lever | CF8 / CF8M | 01 |
| 14 | Lever Pin | S. S. 304 | 01 |
| 15 | Hex. Nut Lock Screw | ASTM 194 | 01 |
| 16 | Hex. Nut For Steam | ASTM 194 | 01 |
| 17 | Fitting Bolt For Cap | ASTM 194 | 02 |
| 18 | Spring Washer | S. S. 304 | 01 |
| No. | Description | Material | Qty. |
| 01 | Body Flanged | WCB | 01 |
| 02 | Top Cover | WCB | 01 |
| 03 | Bracket | WCB | 01 |
| 04 | Bonnet | CF8 / CF8M | 01 |
| 05 | Bonnet Adjusting Ring | CF8 / CF8M | 01 |
| 06 | Piston Guide | CF8 / CF8M | 01 |
| 07 | Piston Guide Adjusting Ring | CF8 / CF8M | 01 |
| 08 | Piston | CF8 / CF8M | 01 |
| 09 | Adjusting Bolt | S. S. 304 | 01 |
| 10 | Adjusting Lock Nut | M. S. | 01 |
| 11 | Stem | S. S. 304 | 01 |
| 12 | Spring | S. S. 302 | 01 |
| 13 | Lifting Lever | CF8 / CF8M | 01 |
| 14 | Lifting Handle | CF8 / CF8M | 01 |
| 15 | Lifting Lever Pin | M. S. | 01 |
| 16 | Lifting Handle Pin | M. S. | 01 |
| 17 | Piston Bush | M. S. | 01 |
| 18 | Cap Lock Nut | M. S. | 02 |
| 19 | Nut For Stem | M. S. | 01 |
| # | Fitting Stud | M. S. | 08 |
| 21 | Fitting Nut | M. S. | 08 |

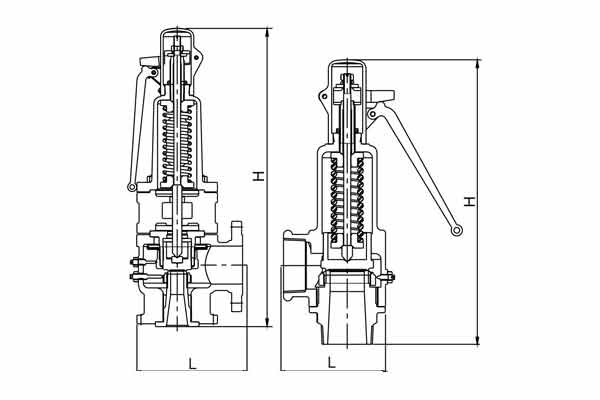

Screwed End Dimension
| Dimensions : (All Dimensions are in mm) | ||||
| Valve Model | Valve Size | L | H | |
| MM | Inch | |||
| 4M-PTS – 15 | 15 | 1/2″ | 59.5 | 193.5 |
| 4M-PTS – 20 | 20 | 3/4″ | 67 | 212.5 |
| 4M-PTS – 25 | 25 | 1″ | 75 | 235.8 |
| 4M-PTS – 32 | 32 | 1.1/4″ | 88.5 | 273.85 |
| 4M-PTS – 40 | 40 | 1.1/2″ | 100 | 293.2 |
| 4M-PTS – 50 | 50 | 2″ | 110 | 324.8 |
| 4M-PTS – 65 | 65 | 2.1/2″ | 133 | 415.85 |
| 4M-PTS – 80 | 80 | 3″ | 174.5 | 486 |
Flange End Dimension
| Dimensions : (All Dimensions are in mm) | ||||
| Valve Model | Valve Size | L | H | |
| MM | Inch | |||
| 4M-PTF – 50 | 50 | 2″ | 213 | 627.3 |
| 4M-PTF – 65 | 65 | 2.1/2″ | 235 | 652.4 |
| 4M-PTF – 80 | 80 | 3″ | 248 | 809.5 |
