V Knotch Floating Ball Valve

“4Matic” Offers Pneumatic Actuator Operated standard round port ball valves have been used, and continue to be used, for many control applications such as services involving moderate pressure drops. Now, with the development of V balls characterized, a full range of control applications is available with superior flow control. These quarter turn control ball valve are more compact, lighter weight and much less expensive than comparably sized globe valves and segmented control valves offered by other companies. control valves offer fast response times to control signals due to advanced digital control of actuation and the in there strenghts of ball valves. These valves exceed class VI offering bubble tight shut off with zero leakage. Other features include superior quality, high flow capacity, the ability to function with fluids containing solids and fibers and ease of maintenance.

Size Range : : 1/2″ to 8″ Flanged

Standard
Design And Manufacturer BS EN ISO 17292 / ASME B.34
Valve Face To Face Dimension ASME B16.10
Flange Standard Conformity ASME B 16.5 150#
Inspection & Testing BS EN 12266 – 1 & 2 API – 598
Top Flange Drilling ASA 150# / DIN 2632 & 2633 / BS EN 10 Table D, E, F (Customer Specified)

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-VBP-15 1/2″ 15 102 2.400
4M-VBP-20 3/4″ 20 102 2.400
4M-VBP-25 1″ 25 102 7.000
4M-VBP-32 1.1/4″ 32 114 7.000
4M-VBP-40 1.1/2″ 40 114 7.750
4M-VBP-50 2″ 50 124 15.800
4M-VBP-65 2.1/2″ 65 145 16.300
4M-VBP-80 3″ 80 165 20.000
4M-VBP-100 4″ 100 194 27.000
4M-VBP-125 5″ 125 210 42.000
4M-VBP-150 6″ 150 229 58.000
4M-VBP-200 8″ 200 243 85.000
4M-VBP-250 10″ 250 279 160.000
4M-VBP-300 12″ 300 340 220.000

(All Dimensions are in mm)

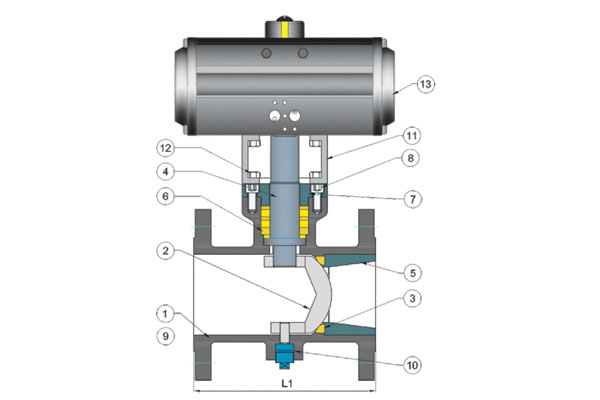

Sr. No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Ball CF8 / CF8M / CF3M
3 Ball Seat PTFE / CFT / GFT / TFM
4 Shaft S. S. 304 / S. S. 316
5 Retainer S. S. 304 / S. S. 316
6 Packing Set PTFE / CFT / GFT / TFM
7 Gland Plate S. S. 304
8 Gland L. N. Bolt S. S. 304
9 Trunnion Pin S. S. 304
10 Trunnion Washer PTFE
11 Bracket WCB / CF8 / CF8M
12 Bracket Fitting Bolt S. S. 304
13 Actuator STD.
For Ball Valves Flange Standards Dimension Table :
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
