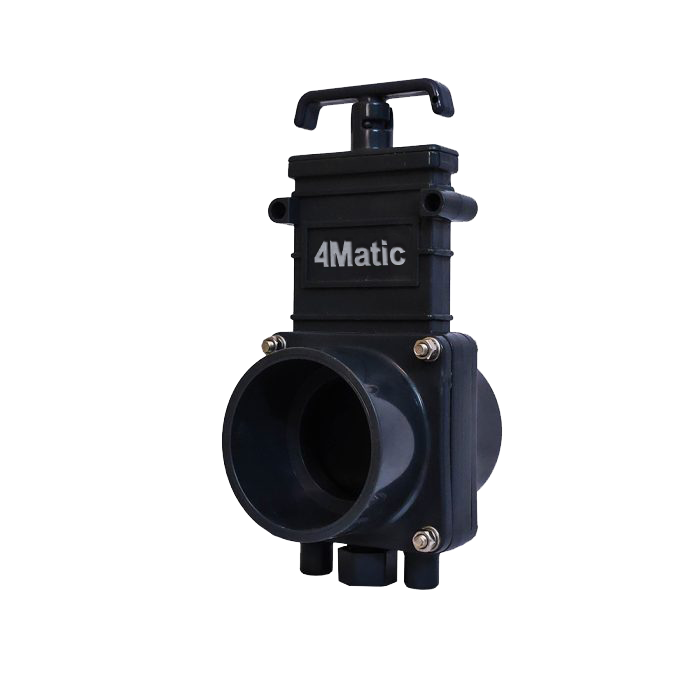

“4Matic” Make High quality ABS knife gate valve, Inexpensive valves for Industrial, Agricultural and Commercial markets. Ideal for quic shut- off in low pressure or vacuum lines. We specialize in economical knife gate valves which are ideal for drain applications that require quick shut-off in low pressure or vacuum systems. Applications include waste water control, septic systems, irrigation, aquaculture, pools, spas, IBC, tank drains, and carpet/extraction equipment. Ball valves, swing check valves and swing/spring combo check.
| Pressure / Temperature | |
| MAXIMUM PRESSURE OPEN | 140 kPa |
| MAXIMUM PRESSURE CLOSE | 275 kPa |
| WEIGHT | 2.1 Kg |
This valve is used for draining the stagnant water inside of the rainwater wet system. It is a valuable purchase allowing the user to quickly and easily drain the wet system without getting wet! Simply raise the plunger upwards handle with ease and the water drains from the system quickly. The valve is 90mm diameter internally allowing the water to drain at high speed. This helps to flush out the leaves and sludge which has accumulated in the bottom of the pipes. Simply install a T-junction into the wet system pipe work at the lowest point possible. The Gate Valve can then be glued into the junction. For best results, fill the wet system from the gutter outlet and drain the gate valve several times until the water runs out clean and clear.
| Material & General Specifications | ||||||
| Size | 1.1/2″ (50mm) | 2″ (63mm or 75/90mm) | 3″ (90mm) | 4″ (110mm) | 6″/8″ (160/200mm) | 10″ / 12″ |
| Color | White or Black (Gray) | White or Black (Gray) | White or Black (Gray) | White (Gray) | White (Gray) | White |
| Hubs | PVC or ABS (PVC) | PVC or ABS (PVC) | PVC or ABS (PVC) | PVC (PVC) | PVC | PVC |
| Body | PVC or ABS (PVC) | PVC or ABS (PVC) | PVC or ABS (PVC) | PVC (PVC) | ABS | ABS |
| Shaft | 304SS | 304SS | 304SS | 304SS | 304SS | 304SS |
| Paddle | Polypro | Polypro or 304SS | Polypro or 304SS | 304SS | 304SS | 304SS |
| Handle | Plastic or Die Cast Al | Plastic or Die Cast Al | Plastic or Die Cast Al | Die Cast Al | 304SS | 304SS |
| Seals | Sarlink | Sarlink | Sarlink | Sarlink | Sarlink | Sarlink |
| Max PSI Open/Closed | 45/100 | 40/80 | 30/30 | 20/40 | 10/20 | 10/15 |
| Mid-Flow Max Closing Pressure | 6 psi | 1 psi (PP) 15 psi (SS) | .5 psi (PP) 9 psi (SS) | 8 psi | 2.5 psi | 2.5 psi |
| Air Cylinder | Reinforced Nylon | Metal or Reinforced Nylon | Metal or Reinforced Nylon | Metal | Metal | Metal |
Notes : Vacuum Applications: 1.1/2″ to 4″ tested to 26 Hq in. when requested by customer Metric Valves are Gray PVC

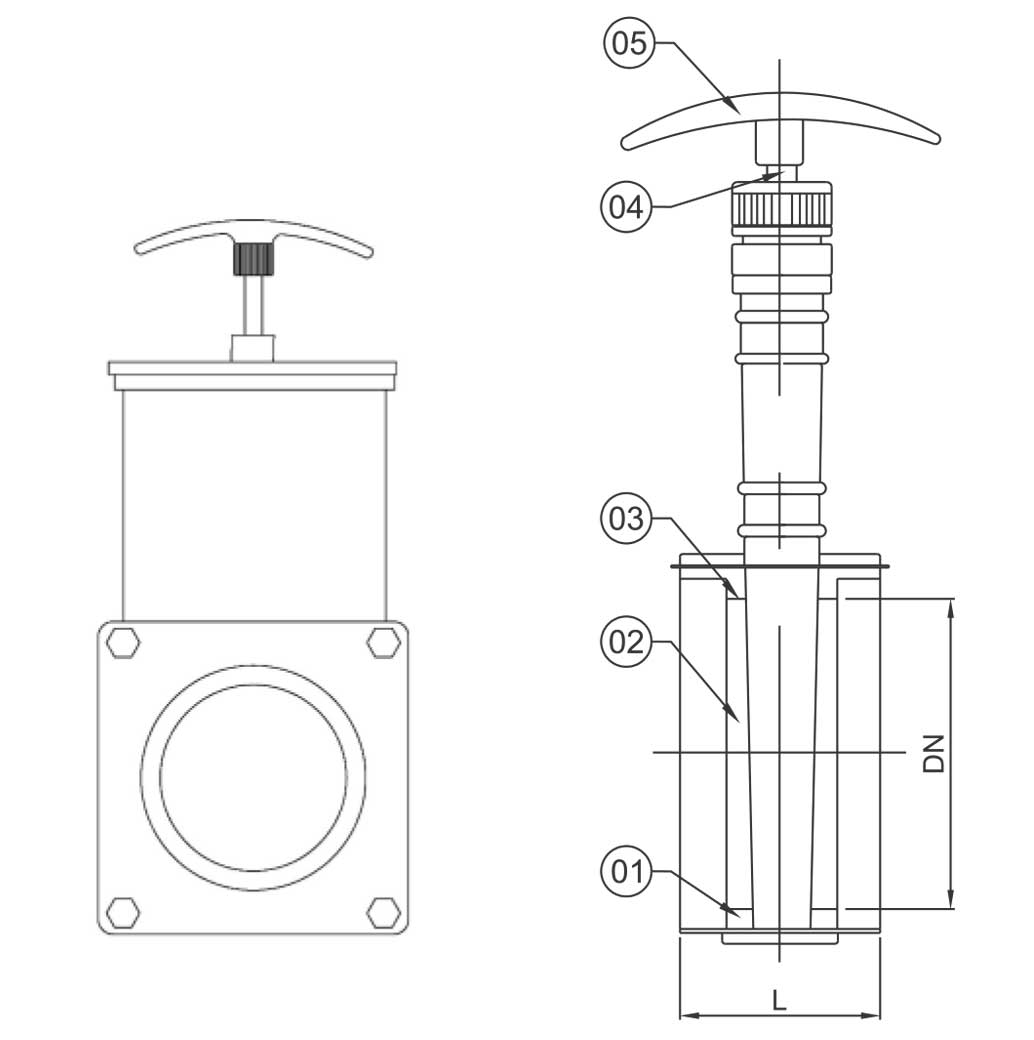

Dimensions :
| Valve Size | DN
±2 mm |
L
±3 mm |
| 1.1/4″ (32 mm) | 32 | 68 |
| 1.1/2″ (40 mm) | 40 | 98 |
| 2″ (50 mm) | 50 | 108 |
| 2.1/2″ (65 mm) | 65 | 124 |
| 3″ (80 mm) | 80 | 128 |
| 4″ (100 mm) | 100 | 132 |
| Sr. No. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Wedge | UPVC |
| 3 | Seat | EPDM / Viton |
| 4 | Stem | Cr13 |
| 5 | Handle | ABS |
