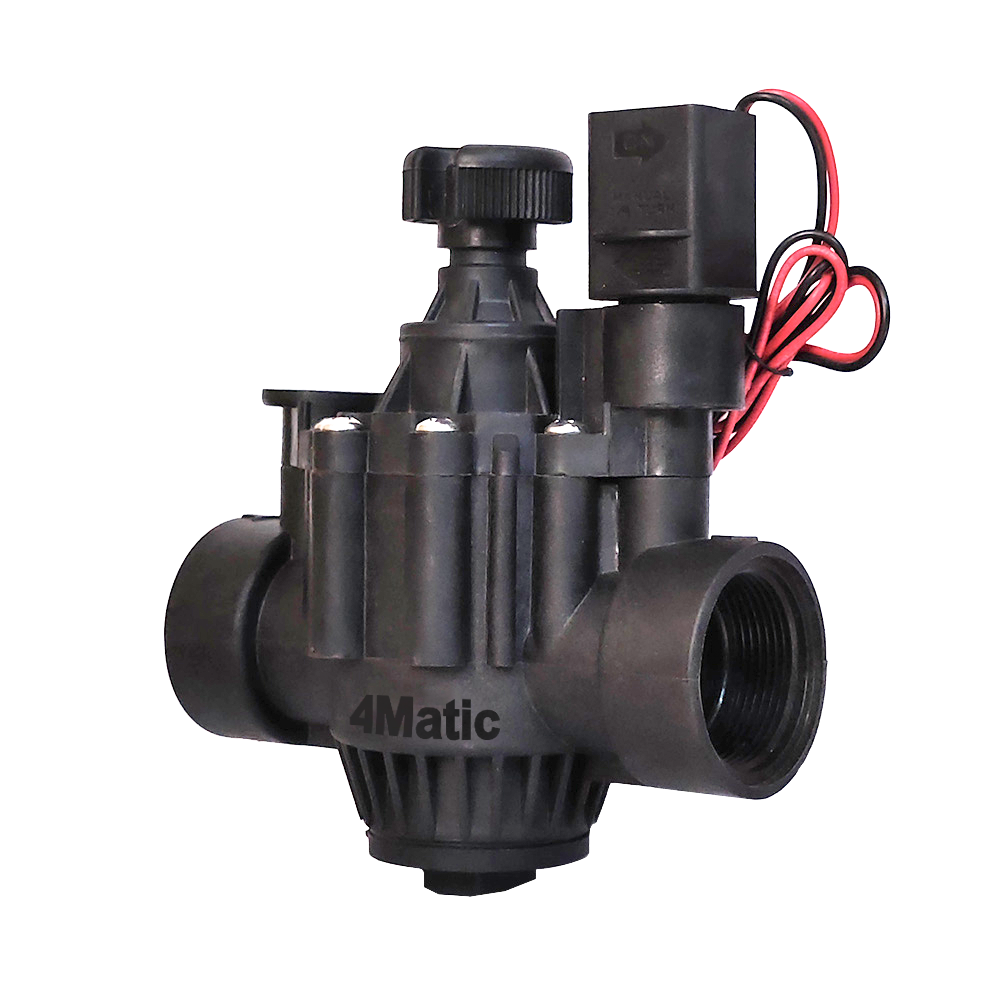

Plastic Solenoid Valve For Irrigation

The 4Matic Plastic Solenoid Controlled Valve is a hydraulically operated, diaphragm actuated control valve with internal hydraulic Feed & Bleed control loop. The 4Matic Plastic Solenoid Controlled Valve opens and closes drip-tight in response to an electric pulse, which causes the solenoid to open or close the valve’s internal hydraulic loop.

  • Straight Solenoid Valve with Female threads on inlet and outlet.
  • Primarily used in irrigation systems, water treatment plants, garden watering system, landscape watering.
  • Available in 12 V DC, 24 V DC, 24 V AC, 220 V AC, upto 40 V DC Latching

Typical Applications :

  • Battery and/or Solar Powered Irrigation Systems
  • Remote/Elevated Systems
  • Turf & Buried Pipe Applications
  • Industrial Greenhouse Irrigation
  • Low Supplied Pressure Irrigation Systems
  • Energy Saving Irrigation Systems

Valve Data :

  • Size : 25 Mm To 80mm
  • Connection Type :  BSP Inner Screw Thread
  • Valve Switch :  Normally Close / Normally Open (Optional)
  • Valve Material : Glass Fiber Reinforced Nylon
