2/2 Way Pilot Operated Diaphragm Type Solenoid Valve

4Matic offers HIGH FLOW Diaphragm type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M body with Electro Polished for multiple and long lasting operations. valves for the inflamable media / environment / Flamproof / Explosion Proof solenoid coil are available in such application.

Types :

  • Normally close – Engergised to Open
  • Normally Open – Energised to Close

Application : Air,Water,Light Oil,Gas, Light Chemical

Size Range :  1/4″ to 6″ Screwed / Flanged / Triclover End

Technical Specifications :
Pressure 0.5 to 10 Bar
Temperature -5 °C to 85°C (Upto 120°C On Request)
Coil Voltage 12V, 24V,48V, lOV, 230V, AC/DC
Coil  Insulation “F” Class
Coil Rating Continuous Rated
Ends S/E, F/E 150# / TC End
Application

Textile Processing Machinery, Chemical Plants, Water Treatment, Sugar Machinery, Cement Machinery, Pumps, Irrigation, Combustion Equipment, Heat Exchanger,Air Dryer,Pollution Controls, Landry Equipments and where dependable ON/OFF type control is required.

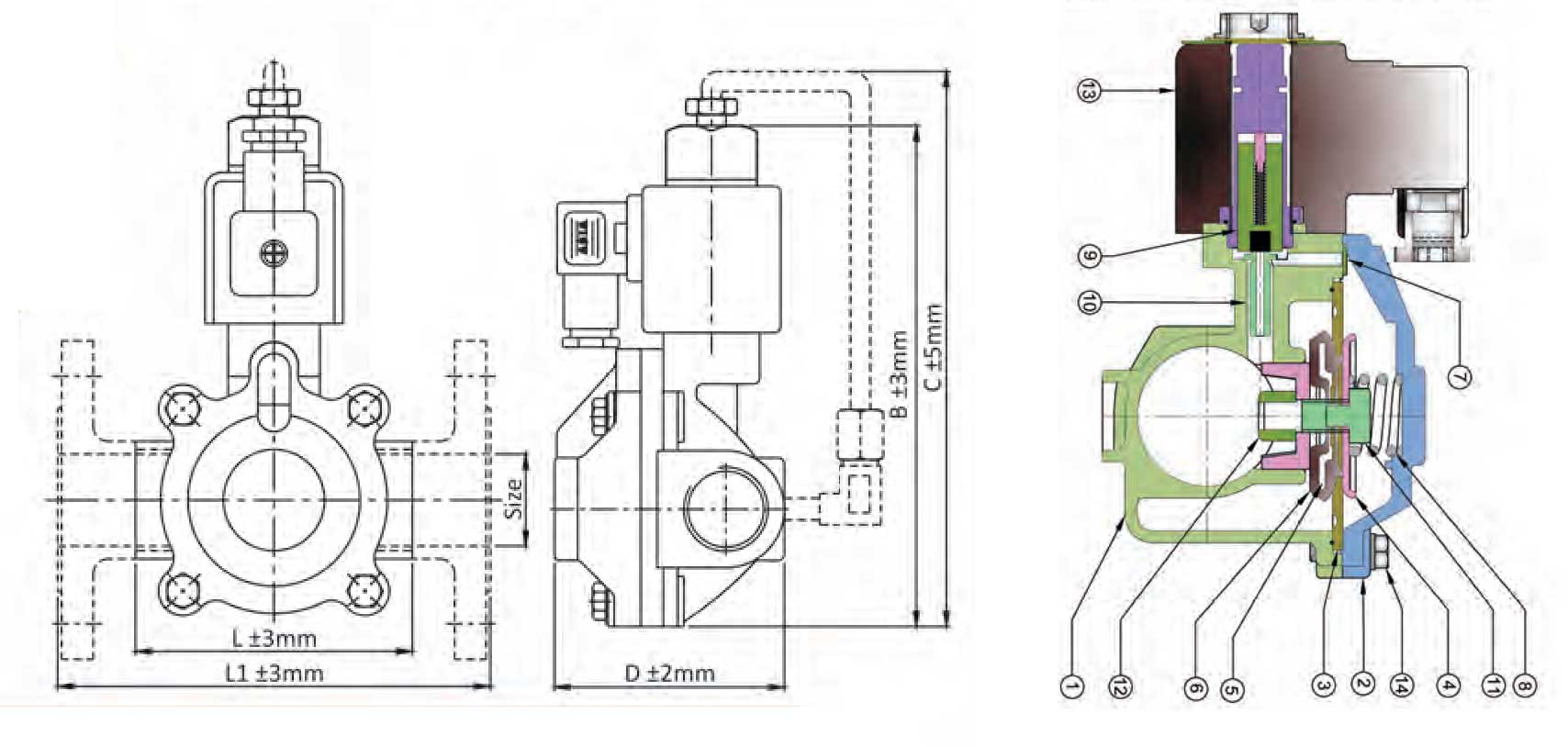

Dimensions ( all dimensions are in MM )
Valve Model Valve Size Flow Factor (kvm³ / hr) L S/E L1 F/E B C D Orifice MM Weight (Approx.)
MM Inch S/E F/E
A4ISD – 6 6 1/4″ 2.5 66 130 128.S 170 55.5 16 0.800 1.200
A4ISD – 10 10 3/8″ 2.5 66 130 128.S 170 55.5 16 0.800 1.200
A4ISD – 15 15 1/2″ 3.5 66 130 128.S 170 55.5 16 0.800 1.200
A4ISD – 20 20 3/4″ 5.0 80 150 136 175.5 65 19 1.100 1.600
A4ISD – 25 25 1″ 11.0 95 160 153 195 81 24 1.400 2.150
A4ISD – 32 32 1.1/4″ 13.0 119 180 163.50 207 98 34.50 2.000 3.300
A4ISD – 40 40 1.1/2″ 20.0 119 200 163.50 207 98 34.50 2.000 3.300
A4ISD – 50 50 2″ 38.0 137 230 184.5 229 116 45 2.900 5.000
A4ISD – 65 65 2.1/2″ 67.6 172 290 201 142.S 65 4.200 7.500
A4ISD – 80 80 3″ 97.6 195 310 237.S 158 72 5.900 10.050
A4ISD – 100 100 4″ 300 350 284.5 206 98 13.950 18.850
A4ISD – 150 150 6″ On Request

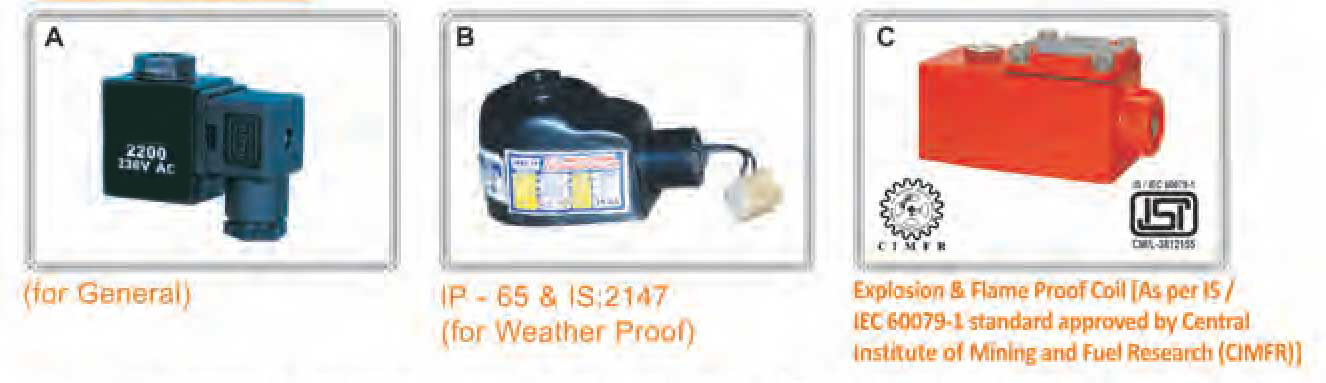

Solenoid Coil
Sr No. Descrption Material Qty
01 Body CF8 / CF8M 01
02 Cover CF8 / CF8M 01
03 Diaphragm NBR 01
04 Embossed Washer S.S.304 01
05 Seat Washer S.S. 01
06 Diaphragm Seat NBR 01
07 ‘O’ Ring For Cover NBR 01
08 Spring S.S.304 01
09 Housing Plunger Set STD. 01
10 Pilot Seat Brass 01
11 Hex Pin for Diaphragm S.S. 01
12 Hex Nut for Diaphragm S.S. 01
13 Sole.Coil Casing STD. 01
14 Hex bolt + Washer S.S. 06

Note : Since, constant worldwide advancement in technology,We keep our rights reserved to make changes time to time in Technical specifications and Dimensions without prior notice.
