2 PC. Design “VGO” Floating Ball Valve

4MaticValves High Performance Ball Valves 4MVGO 4MBV

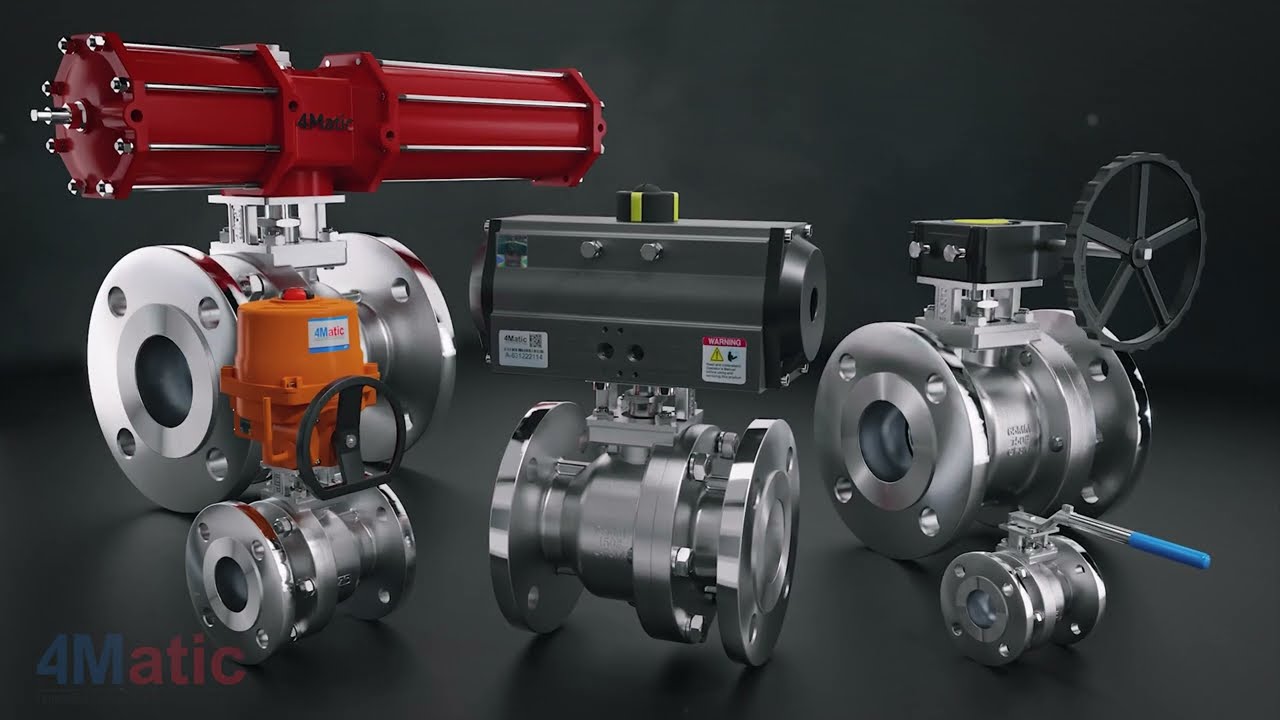

“4Matic” Offers Pneumatic Actuator Operated High Performance Two Piece Design Floating Ball Valve. Engineered for vigorous application with reliable long life.

Size Range : 1/2″ to 14″ Flanged 150# (upto 1500# On Request)

Standard
Design And Manufacturing BS EN ISO 17292 / ASME B 16.34
Valve Face To Face Dimension ASME B 16.10
Flange Standard Conformity ASME B 16.5 Class 150 / 300
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI ISO – 5208

Accessories

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve
2Pc Design Floating Ball Valve Floating Ball Valve Manufacturer & Exporter in India
2Pc. Design Floating Ball Valve PG12 2Pc. Design Floating Ball Valve PG12
Sr.No. Description Material
1 Body WCB / CF8 / CF8M / CF3M
2 Connector WCB / CF8 / CF8M / CF3M
3 Ball CF8 / CF8M / CF3M
4 Stem Pin S. S. 304 / 316
5 Ball Seat PTFE / GFT / CFT / TFM
6 Body Seat Grafoil
7 Conn. ‘0’ Ring NBR / EPFM / VITON
8 Stem Seat Bottom PTFE / GFT / CFT / TFM
9 Stem ‘0’ Ring NBR / EPFM / VITON
10 Stem Seat Top Grafoil
11 Spacer Ring S. S. 304 / 316
12 Antistatic Spring S. S. 302
13 Antistatic Ball S. S. 304
14 Disc Spring Spring Steel
15 Stem & Handle Nut S. S. 304
16 Fitting Stud I H. T. / S. S. 304
17 Fitting Nut + Spring Washer H. T. / S. S. 304
18 Adapter S. S. 304
19 Lock Washer S. S. 304
20 Bracket WCB / CF8 / CF8M
21 Brac. Fitting Hexbolt + Spring Washer S. S. 304
22 Actuator STD.

Flanged  150# Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-VGO-15 1/2″ 15 108 2.400
4M-VGO – 20 3/4″ 20 117 4.600
4M-VGO – 25 1″ 25 127 5.100
4M-VGO – 32 1.1/4″ 32 140 5.800
4M-VGO – 40 1.1/2″ 40 165 8.750
4M-VGO – 50 2″ 50 178 10.800
4M-VGO – 65 2.1/2″ 65 190 16.200
4M-VGO – 80 3″ 80 203 24.750
4M-VGO – 100 4″ 100 229 36.150
4M-VGO – 125 5″ 125 254 56.900
4M-VGO – 150 6″ 150 267 90.800
4M-VGO – 200 8″ 200 457 175.750
4M-VGO – 250 10″ 250 533.4 —
4M-VGO – 300 12″ 300 609.6 —
4M-VG0 – 350 14″ 350 — —

(All Dimensions are in mm)

Flanged  300# Dimensions :

Valve Model Valve Size L1 Weight Approx.
Inch MM
4M-3VGO-15 1/2″ 15 140 3.550
4M-3VGO – 20 3/4″ 20 152 6.050
4M-3VGO – 25 1″ 25 165 8.450
4M-3VGO – 32 1.1/4″ 32 178 10.750
4M-3VGO – 40 1.1/2″ 40 190 14.700
4M-3VGO – 50 2″ 50 216 18.850
4M-3VGO – 65 2.1/2″ 65 241 27.490
4M-3VGO – 80 3″ 80 282 38.000
4M-3VGO – 100 4″ 100 305 59.700
4M-3VGO – 125 5″ 125 381 99.000
4M-3VGO – 150 6″ 150 403 113.880
4M-3VGO – 200 8″ 200 502 235.900
4M-3VGO – 250 10″ 250 568.4 —
4M-3VGO – 300 12″ 300 648 —
4M-VG0 – 350 14″ 350 — —

(All Dimensions are in mm)

For Ball Valves Flange Standards Dimension Table :
ball valve manufacturer in ahmedabad ball valve manufacturer in ahmedabad
As Per ASME B16.5 150# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 108 90 34.9 9.6 2 15.9 4 60.3
3/4″ 20 19 117 100 42.9 11.2 2 15.9 4 69.9
1″ 25 25 127 110 50.8 12.7 2 15.9 4 79.4
1.1/4″ 32 32 140 115 63.5 14.3 2 15.9 4 88.9
1.1/2″ 40 38 165 125 73 15.9 2 15.9 4 98.4
2″ 50 49 178 150 92.1 17.5 2 19.05 4 120.7
2.1/2″ 65 62 190 180 104.8 20.7 2 19.05 4 139.7
3″ 80 74 203 190 127 22.3 2 19.05 4 152.4
4″ 100 100 229 230 157.2 22.3 2 19.05 8 190.5
5″ 125 125 254 255 185.7 22.3 2 22.2 8 215.9
6″ 150 150 267 280 215.9 23.9 2 22.2 8 241.3
8″ 200 201 292 345 269.9 27 2 22.2 8 298.5
10″ 250 252 330 405 323.8 28.6 2 25.4 12 362
12″ 300 303 610 485 381 30.2 2 25.4 12 431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 140 95 34.9 12.7 2 15.9 4 66.7
3/4″ 20 19 152 115 42.9 14.3 2 19.05 4 82.6
1″ 25 25 165 125 50.8 15.9 2 19.05 4 88.9
1.1/4″ 32 32 178 135 63.5 17.5 2 19.05 4 98.4
1.1/2″ 40 38 190 155 73 19.1 2 22.2 4 114.3
2″ 50 49 216 165 92.1 20.7 2 19.05 8 127
2.1/2″ 65 62 241 190 104.8 23.9 2 22.2 8 149.2
3″ 80 74 282 210 127 27 2 22.2 8 168.3
4″ 100 100 305 255 157.2 30.2 2 22.2 8 200
5″ 125 125 381 280 185.7 33.4 2 22.2 8 235
6″ 150 150 403 320 215.9 35 2 22.2 12 269.9
8″ 200 201 419 380 269.9 39.7 2 25.4 12 330.2
10″ 250 252 457 445 323.8 46.1 2 28.6 16 387.4
12″ 300 303 648 520 381 49.3 2 31.75 16 450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size Port L1 ØD Øg b f ØJ N PCD
Inch MM
1/2″ 15 13 165 95 34.9 14.3 7 15.9 4 66.7
3/4″ 20 19 190 115 42.9 15.9 7 19.05 4 82.6
1″ 25 25 216 125 50.8 17.5 7 19.05 4 88.9
1.1/4″ 32 32 229 135 63.5 20.7 7 19.05 4 98.4
1.1/2″ 40 38 241 155 73 22.3 7 22.2 4 114.3
2″ 50 49 292 165 92.1 25.4 7 19.05 8 127
2.1/2″ 65 62 330 190 104.8 28.6 7 22.2 8 149.2
3″ 80 74 356 210 127 31.8 7 22.2 8 168.3
4″ 100 100 432 275 157.2 38.1 7 25.4 8 215.9
5″ 125 125 508 330 185.7 44.5 7 28.6 8 266.7
6″ 150 150 559 355 215.9 47.7 7 28.6 12 292.1
8″ 200 201 660 420 269.9 55.6 7 31.75 12 349.2
10″ 250 252 787 510 323.8 63.5 7 34.9 16 431.8
12″ 300 303 838 560 381 66.7 7 34.9 20 489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
