Mastering Cv : The Core of 4Matic Control Valve Performance

At 4MaticValves, we understand that true control starts with precision — and nothing defines flow precision better than the Flow Coefficient (Cv). Whether you’re regulating water, steam, or corrosive media, understanding Cv is essential for choosing and sizing the right control valves so as to have system performance maximization.

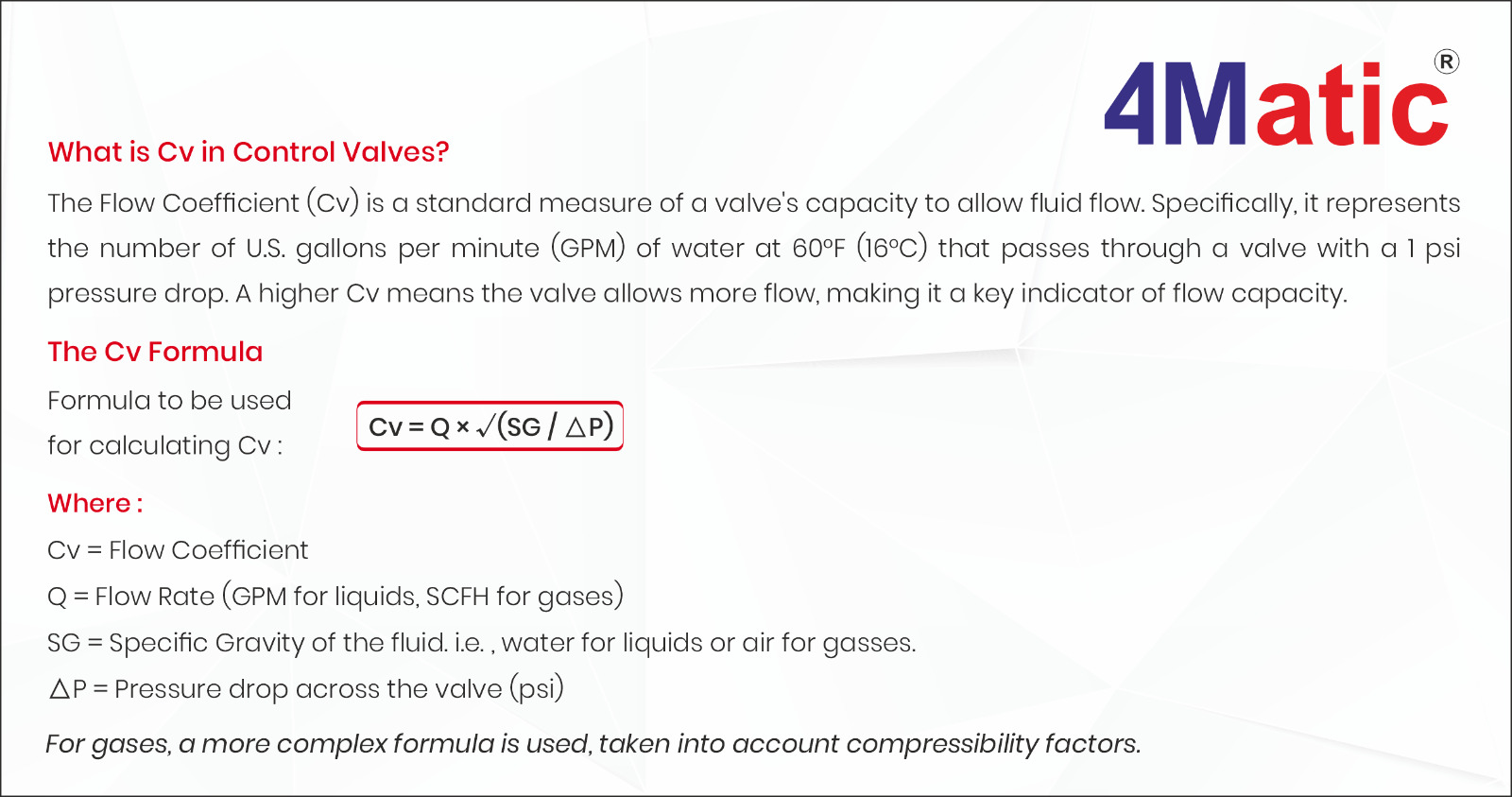

4matic 4matic

Vitality of Cv in Valve Engineering

Following are the points to understand the importance of Cv.
1. Perfect Valve Sizing
Prevents issues like poor control due to oversizing or restricted flow because of undersizing.
2. Operational Proficiency
Ensured flow targets are met while maintaining system stability.
3. Energy Maximization
Reduces unnecessary pressure losses resulting into lower energy consumption.
4. Safety Deliberations
Minimizes the risk of cavitation, erosion, or flashing in demanding conditions.

Using Cv For Selecting The Valve

A standard approach to valve selection includes
1. Identifying Process Order
Determines flow rate, fluid properties, and pressure drop.
2. Calculating Cv
Use the Cv formula or make use of 4Matic sizing calculator.
3. Selecting the Appropriate Valve
Target valves that operate efficiently within 20–80% of their range for best control
performance.
4. Verifying Technical Data
Emulate Cv values from valve specification sheets to come up with the most viable match.

Standard Cv Values For Distinct Valves

• Globe Valves : better quality control and consistancy.
• Ball Valves : High Cv, most viable on/off control
• Butterfly Valves : Adequate Cv, competent for large volume flow applications.

To Sum Up. . . . .

Cv is a basic criterion for choosing a control valve, as it influences execution and proficiency as well as safeguarding. 4Matic has an endeavour for right calculation and selection so as to have an assured smooth-sailing operation, averting executional obstructions which otherwise may cost dearly.
