Spherical Disc Valve High Performance Butterfly Valve
Precise & Strong Durable to 240 °C / 600 °C Temperature and 10 Kg/cm2 / 20 Kg/cm2 Pressure
5 Special Effects.

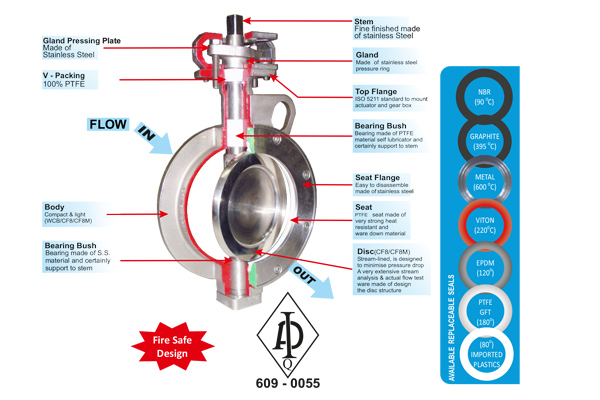

- Compact Design – Full Port – Offers Mass Flow
- Simple Structure, Light & Smooth – Takes Very Short Time For Opening & Closing With Very Low Torque
- Easy Maintenance – Replaceable Seals Design
- Self Sealing – Self Cleaning The Under Cut Disc Segment And Seal Tends To Wipe Away The Material Form The Sealing Area,
- Gland Pressing Plate – Ensure Compete Utilization of Gland Seals
Application
- Hygienic Powder & Slurries, especially in Pharmaceutical Industries.
- Chemical and Dyeing Fluids in Textile Processing Brine Waters & Oils.
- Steam Lines, Air / Gas Lines / Vacuum.
Spherical Disc Valve has been Proved as Superior to Other Valves in Many Aspects, Particularly in…
- Weight
- Space
- Pressure Range
- Multiple Operations
- Maintenance Ease
- Torque & Economy
| Spherical Disc Valve | Technical Specifications |
| Size Range | 1.1/2″ to 36″ |
| Construction Type | Double Eccentric Disc Design |
| Body | WCB / CF8 / CF8M |
| Disc | CF8 / CF8M |
| Seat | PTFE (available EPDM / Metal to Metal ) |
| Shaft | AISI 410 / 304 / 316 |
| Plate Mounting | Namur Standard |
| Pressure Rating | ANSI 150 Class |
| End Connection | ANSI 300 / 600 Class |
| Wafer Sandwiched | |
| Lug Type | |
| Operating Temp. Range | -25 °C to 180 °C (Soft Seating) |
| -25 °C to 600 °C (Metal to Metal Seating) | |
| Operating | Hand Lever, Worm Gear Box, |
| CV Value in GPM | ||
| Valve Size | CV Full Open 90° (GPM) Class 150 | |
| MM | Inch | |
| (40) | 1.1/2″ | 70 |
| (50) | 2″ | 92 |
| (65) | 2.1/2″ | 150 |
| (80) | 3″ | 260 |
| (100) | 4″ | 460 |
| (125) | 5″ | 760 |
| (150) | 6″ | 1350 |
| (200) | 8″ | 2200 |
| (250) | 10″ | 3200 |
| (300) | 12″ | 4700 |
| (350) | 14″ | 5800 |
| (400) | 16″ | 8000 |
| (450) | 18″ | 10500 |
| (500) | 20″ | 14000 |
| (600) | 24″ | 21000 |
| (650) | 26″ | 23400 |
| (700) | 28″ | 27000 |
| (750) | 30″ | 33300 |
| (800) | 32″ | 40200 |
| (900) | 36″ | 56500 |
| CV Value in GPM | |||||
| Valve Size | Differential Pressure (AP) | ||||
| MM | Inch | 5 Kg/cm2 | 10 Kg/cm2 | 15 Kg/cm2 | 20 Kg/cm2 |
| (40) | 1.1/2″ | 0.8 | 1.0 | 1.2 | 1.5 |
| (50) | 2″ | 0.9 | 1.2 | 1.5 | 1.7 |
| (65) | 2.1/2″ | 1.6 | 2.2 | 2.4 | 3.0 |
| (80) | 3″ | 3.0 | 3.4 | 4.2 | 5.0 |
| (100) | 4″ | 4.0 | 4.6 | 5.4 | 6.4 |
| (125) | 5″ | 5.8 | 8.0 | 9.5 | 11.5 |
| (150) | 6″ | 9.0 | 11.5 | 12.5 | 14.5 |
| (200) | 8″ | 14.0 | 17.5 | 24.0 | 28.0 |
| (250) | 10″ | 23.5 | 26.5 | 28.0 | 30.0 |
| (300) | 12″ | 32.0 | 36.0 | 40.0 | 50.0 |
| (350) | 14″ | 50.0 | 65.0 | 83.5 | 108.5 |
| (400) | 16″ | 69.4 | 94.5 | 120.0 | 160.0 |
| (450) | 18″ | 95.5 | 128.0 | 157.2 | 205.0 |
| (500) | 20″ | 122.5 | 193.3 | 210.0 | 293.4 |
| (600) | 24″ | 213.3 | 293.4 | 366.7 | 440.1 |
| (650) | 26″ | 265 | 350 | 400 | 510 |
| (700) | 28″ | 300 | 395 | 480 | 595 |
| (750) | 30″ | 321 | 420 | 519 | 617 |
| (800) | 32″ | 481 | 630 | 780 | 920 |
| (900) | 36″ | 518 | 663 | 850 | 992 |
| Standards | Series 5150 (40 NB To 600 NB) | Series 6150 ( 650 NB To 1200 NB) |
| Design and manufacturing | API 609 Category B | MSS SP – 68 |
| Valve face to face dimensions | API 609 Category B / ANSI B 16.10 | ISO 5752 Series 20, MSS SP – 68 |
| Flange Standard conformity | ANSI B 16.5 Class 150 | ASME / ANSI B 16.47 Series ‘A’ |
| Inspection & testing Standard | API 598 / ANSI FCI 70 – 2 | API 598 / BS 6755 |
| Fire safe testing | API 607 | API 607 |
| Pressure temperature rating | ASME / ANSI B 16.34 | ASME / ANSI B 16.34 |

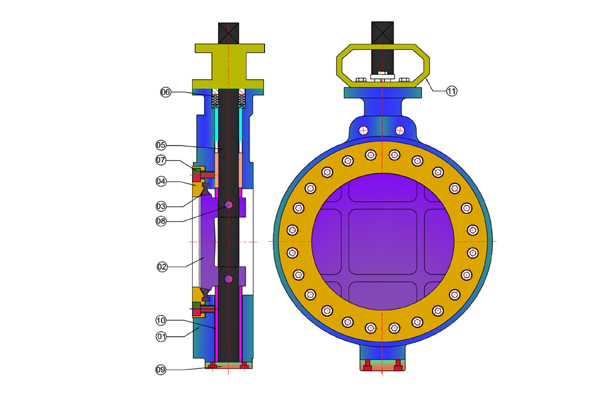

| No. | Description | Material |
| 1 | Body | ASTM A 216 Gr. WCB / A 351 Gr. CF8 / CF8M |
| 2 | Disc | ASTM A 351 Gr. CF8 / CF8M |
| 3 | Disc Seal Ring | PTFE / GFT |
| 4 | Retainaer | M.S / S.S 304 / 316 |
| 5 | Shaft | S.S 410 / S.S 304 /316 |
| 6 | Stem Shaft | PTFE / GFT |
| 7 | Disc Pin | S.S |
| 8 | Steam Plate | S.S 304 / 316 |
| 9 | Shaft Bush | M.S / S.S 304 / 316 |
| 10 | Gland Plate | M.S / S.S 304 / 316 |
| 11 | Body Seat Ring | M.S. |

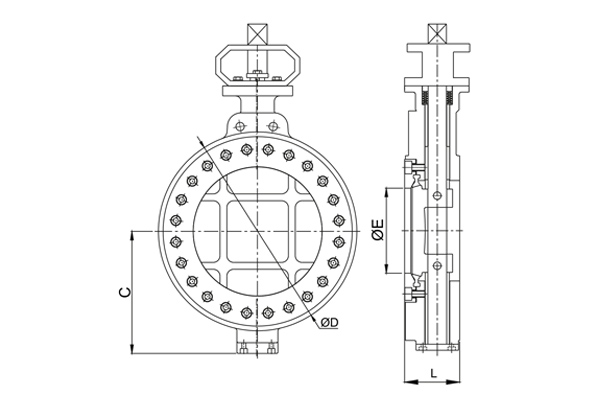

| Dimensions : 150# (All Dimensions are in mm) | |||||||
| Valve Model | Valve Size | L | C | ØE | ØD | Weight (Approx) |
|
| MM | Inch | ||||||
| 4M-SDV-40 | 40 | 1.1/2″ | 42 | 57 | 38 | 82 | 1.600 |
| 4M-SDV-50 | 50 | 2″ | 45 | 68.5 | 50.8 | 95 | 2.200 |
| 4M-SDV-65 | 65 | 2.1/2″ | 48 | 74.5 | 60.6 | 108 | 3.000 |
| 4M-SDV-80 | 80 | 3″ | 48 | 80 | 72 | 127 | 3.800 |
| 4M-SDV-100 | 100 | 4″ | 54 | 96 | 100 | 159 | 5.600 |
| 4M-SDV-125 | 125 | 5″ | 57 | 117 | 123 | 186 | 7.700 |
| 4M-SDV-150 | 150 | 6″ | 57 | 132 | 143 | 217 | 10.400 |
| 4M-SDV-200 | 200 | 8″ | 64 | 157 | 192 | 270 | 15.000 |
| 4M-SDV-250 | 250 | 10″ | 72 | 187 | 239 | 322 | 25.750 |
| 4M-SDV-300 | 300 | 12″ | 82 | 218 | 290 | 382 | 36.000 |
| 4M-SDV-350 | 350 | 14″ | 92 | 242 | 335 | 436 | 46.900 |
| 4M-SDV-400 | 400 | 16″ | 102 | 270.5 | 387.5 | 495 | 66.850 |
| 4M-SDV-450 | 450 | 18″ | 114 | 362 | 425 | 540 | 117.000 |
| 4M-SDV-500 | 500 | 20″ | 127 | 400 | 475 | 595 | 146.500 |
| 4M-SDV-600 | 600 | 24″ | 154 | 454 | 560 | 705 | 290.000 |
| 4M-SDV-650 | 650 | 24″ | 165 | 478 | 608 | 755 | 360.000 |
| 4M-SDV-700 | 700 | 26″ | 165 | 505 | 661.5 | 810 | 390.000 |
| 4M-SDV-750 | 750 | 28″ | 190 | 542 | 696 | 855 | 475.000 |
| 4M-SDV-800 | 800 | 30″ | 190 | 580 | 755 | 913 | 524.000 |
| 4M-SDV-900 | 900 | 32″ | 203 | 640 | 864 | 1032 | 675.000 |

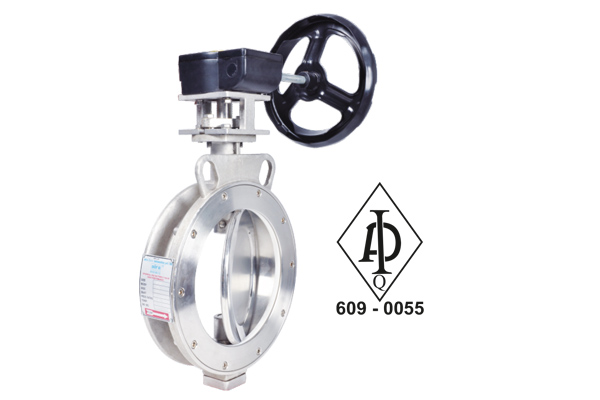

Spherical Disc Valve “Wafer Type” High Performance Butterfly Valve 300 Class
Size Range : 1.1/2″ to 24″
| Standard | |
| Design And Manufacturing | API 609 Category “B” |
| Valve Face To Face Dimension | API 609 Category “B” |
| Flange Standard Conformity | ASME / ANSI B 16.5 Class 300 |
| Inspection & Testing | API 598 |
| PRESSURE / TEMPERATURE RATING | |
| PRESSURE | 300# Pressure Rating |
| Temperature | 180 °C |
| Seat Pressure | 57 Kg/cm2 |
| Shell Pressure | 79 Kg/cm2 |

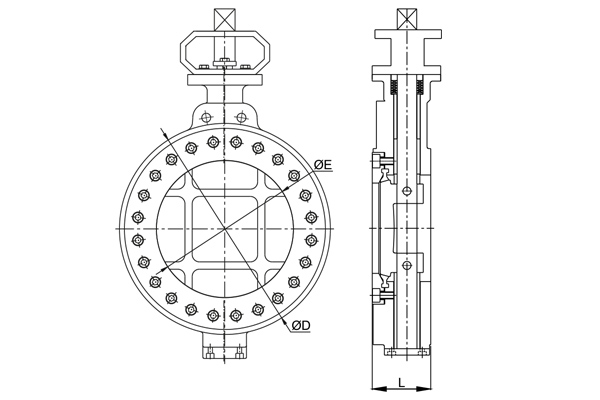

| Dimensions : 300# (All Dimensions are in mm) | |||||
| Valve Model | Valve Size | L | ØD | ØE | |
| MM | Inch | ||||
| 4MSDV-3-40 | 40 | 1.1/2″ | 42 | 88 | 38 |
| 4MSDV-3-50 | 50 | 2″ | 45 | 101 | 50.8 |
| 4MSDV-3-65 | 65 | 2.1/2″ | 48 | 108.5 | 60.6 |
| 4MSDV-3-80 | 80 | 3″ | 48 | 127 | 72 |
| 4MSDV-3-100 | 100 | 4″ | 54 | 159 | 100 |
| 4MSDV-3-125 | 125 | 5″ | 59 | 187 | 123 |
| 4MSDV-3-150 | 150 | 6″ | 59 | 219 | 143.2 |
| 4MSDV-3-200 | 200 | 8″ | 64 | 270 | 192 |
| 4MSDV-3-250 | 250 | 10″ | 87 | 340 | 239.2 |
| 4MSDV-3-300 | 300 | 12″ | 92 | 394 | 290 |
| 4MSDV-3-350 | 350 | 14″ | 117 | 436 | 335 |
| 4MSDV-3-400 | 400 | 16″ | 133 | 500 | 387.5 |
| 4MSDV-3-450 | 450 | 18″ | 149 | 540 | 425 |
| 4MSDV-3-500 | 500 | 20″ | 159 | 595 | 475 |
| 4MSDV-3-600 | 600 | 24″ | 181 | 705 | 560 |

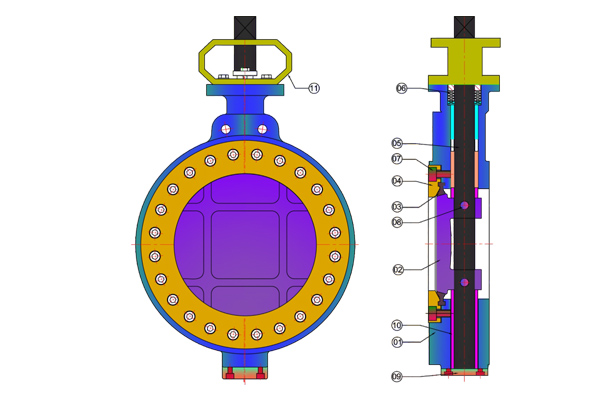

| No. | Description | Material |
| 1 | Body | ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M |
| 2 | Disc | ASTM A 351 Gr. CF8 / CF8M |
| 3 | Replaceable Seat | PTFE / GFT |
| 4 | Retainer | M.S. / S.S. 304 / 316 |
| 5 | Shaft | S.S. 410 / S.S. 304 / 316 |
| 6 | Gland Packing | PTFE / GFT |
| 7 | Retainer Bolt | S.S. |
| 8 | Disc Pin | S.S. 304 / 316 |
| 9 | Steam Plate | M.S. / S.S. 304 / 316 |
| 10 | Shaft Bush | M.S. / S.S. 304 / 316 |
| 11 | Bracket | M.S. |
