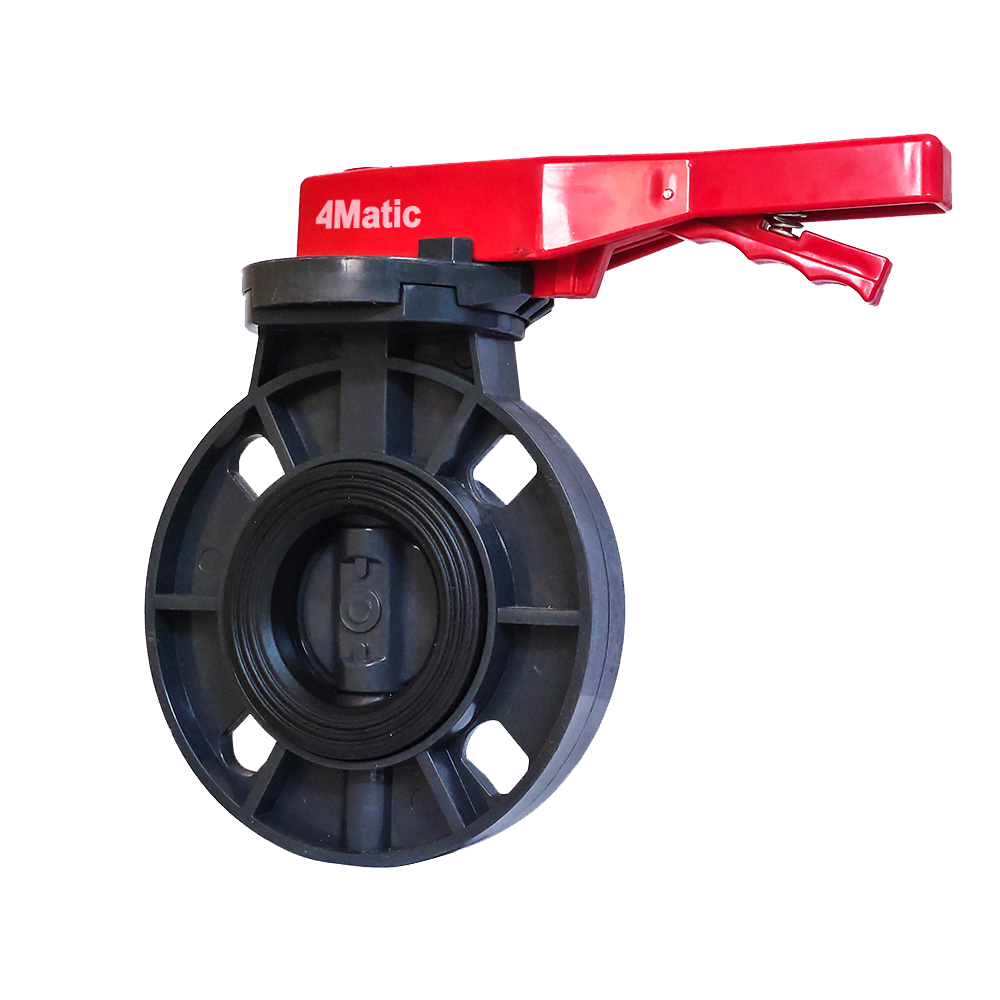

“4Matic” Make UPVC/ CPVC butterfly valves are constructed of ASTM D1784 virgin UPVC resin. Both models have excellent flow characteristics and provide a clear indication of disc position. Ideally suited for flow control using minimal piping space. Recommended for commercial and industrial applications such as sewage and water treatment, chemicals, marine, food processing, swimming pools, etc.
| Pressure / Temperature | |
| PRESSURE RATING | 150 W.O.G. AT 73° F |
| MAXIMUM SERVICE TEMPERATURE | 225 W.O.G. |
| Specification | |
| Joint End | Flanged End (10K, 150LB, PN10) |
| Working Pressure | 150 PSI |
| Feature | Wafer Body Design / PVC with PVC Disc / 304 Grade Stainless Steel / EPDM / Viton Liner / ISO 5211 Mounting Pad / Standard Lockout Hand lever |
Application :
- Water & Wastewater Treatment
- Chemical Processing
- Food & Beverage
- Swimming Pools & Water Parks
- Aquaculture
- Aquarium & Zoo Service
- Pharmaceutical
- Pulp & Paper
- Landfill Service
- Marine & Corrosive Environments
- Metal Finishing & Plating
Benefits :
- High Flow Capacity
- Low Pressure Drop
- Economical Alternative to Metal Butterfly Valve
Option :
- Gear Operators
- Electric or Pneumatic Actuators
| Material Specification | |
| PART | MATERIAL |
| BODY | UPVC |
| DISC | POLYPROPYLENE |
| SEAT | EPDM |
| STEM | 410 SS |
| O – RINGS | EPDM |
| INSERTED NUT | 410 SS |
| LARGE HANDLE | ABS |
| SMALL HANDLE | ABS |
| SPRING LOCK | ABS |
| HANDLE INSERT | STAINLESS STEEL |
| HANDLE LEVER | 304 SS |
| SPRING | 304 SS |
| SPRING PIN | 304 SS |
| WASHER | 304 SS |
| LOCKING PLATE | 304 SS |
| GEAR SEAT | UPVC |
| BOLT | 304 SS |
| NUT | UPVC |
| INSERT NUT | 410 SS |
| DISC INDICATOR | 304 SS |
| RIVET | STAINLESS STEEL |
| OPERATION | LEVER & WORM GEAR |

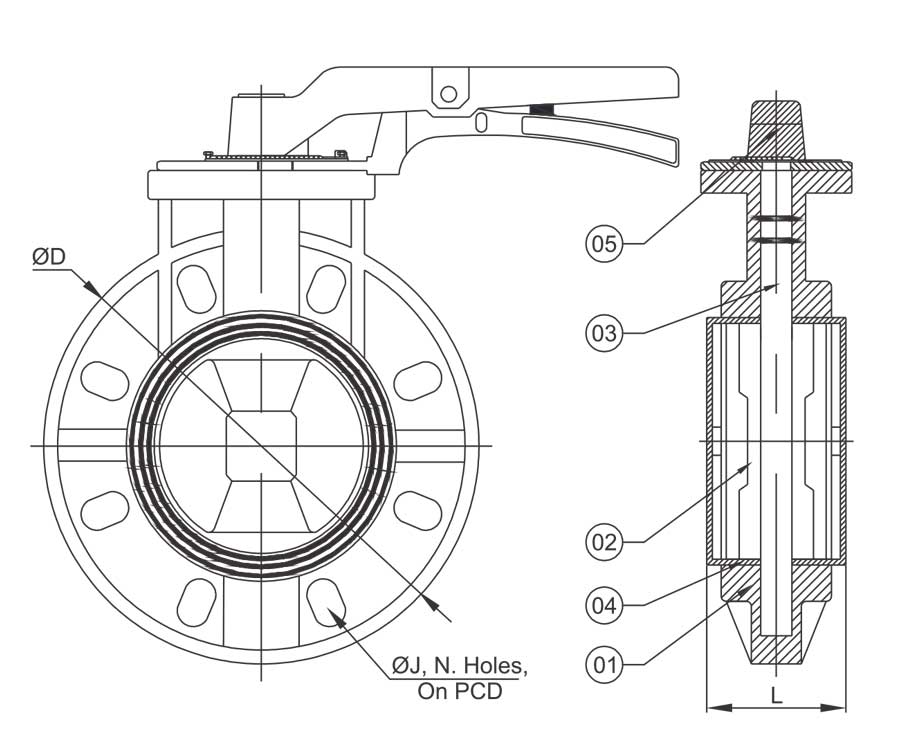

Dimensions :
| Valve Size | Port ±1 mm |
ØD ±3 mm |
ØJ ±1 mm |
N | PCD ±1.5 mm |
|
| 2″ (50 mm) | 49 | 46 | 159 | 19 | 4 | 121 |
| 2.1/2″ (65 mm) | 64 | 42 | 178.7 | 19 | 4 | 139.5 |
| 3″ (80 mm) | 80 | 47 | 194.5 | 19 | 8 | 155 |
| 4″ (100 mm) | 100 | 54 | 228 | 19 | 8 | 180.7 |
| 5″ (125 mm) | 125 | 63 | 254 | 23 | 8 | 209 |
| 6″ (150 mm) | 148 | 69 | 279.5 | 24 | 8 | 236.5 |
| 8″ (200 mm) | 199 | 86 | 343 | 25 | 8 | 293.5 |
| Sr. No. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Disc | UPVC |
| 3 | Shaft | AISI 410 |
| 4 | Seat | NBR |
| 5 | Lever | ABS |
